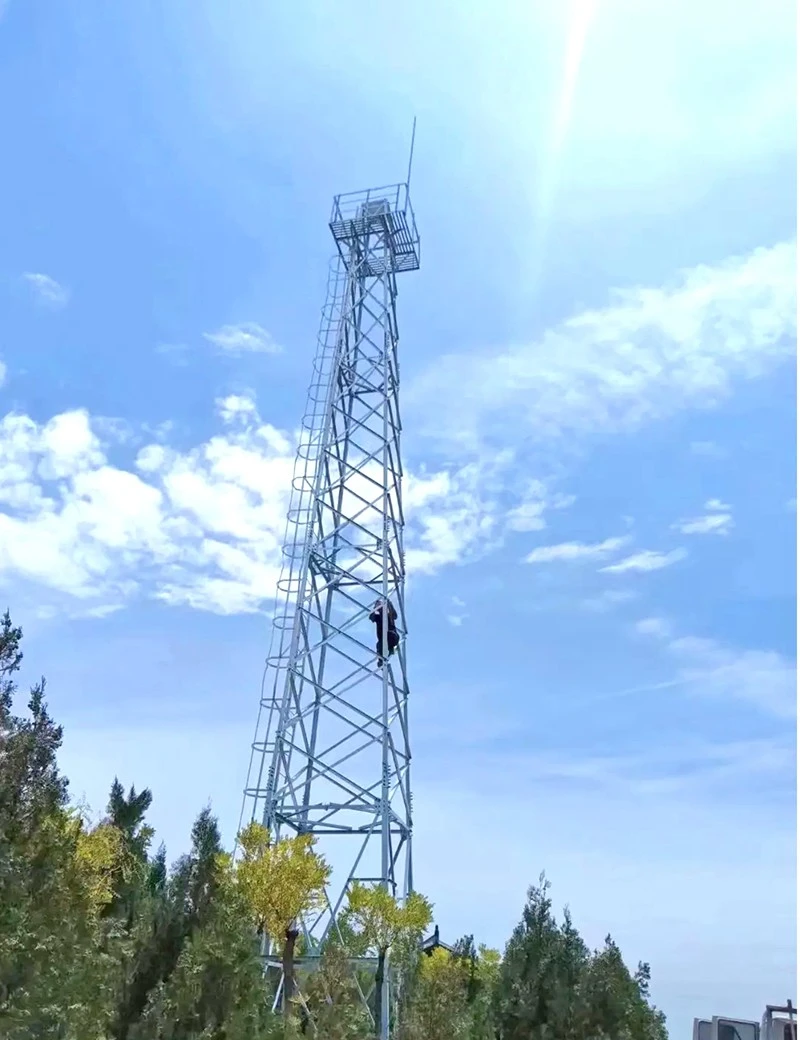

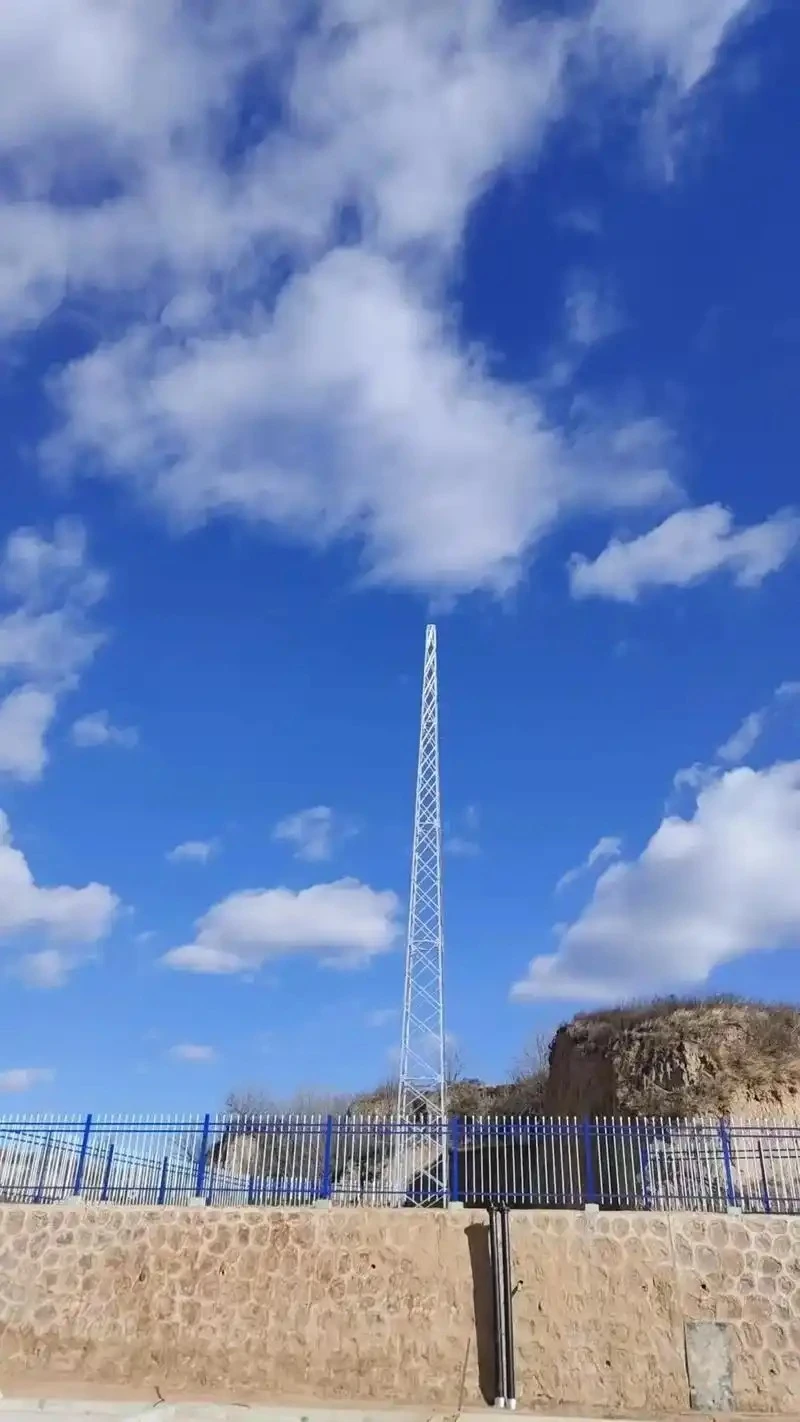

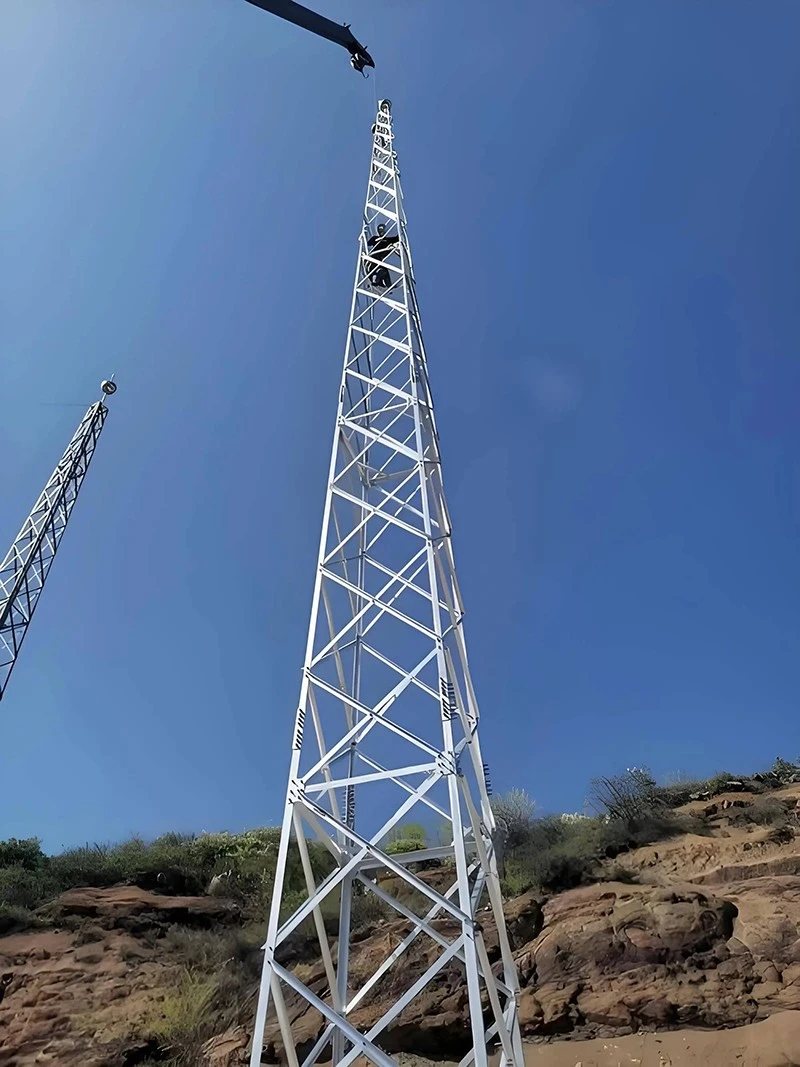

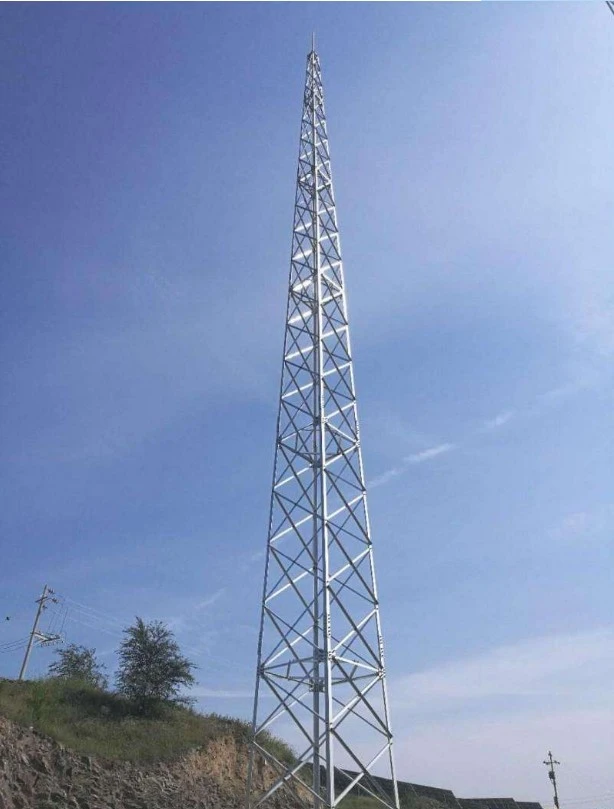

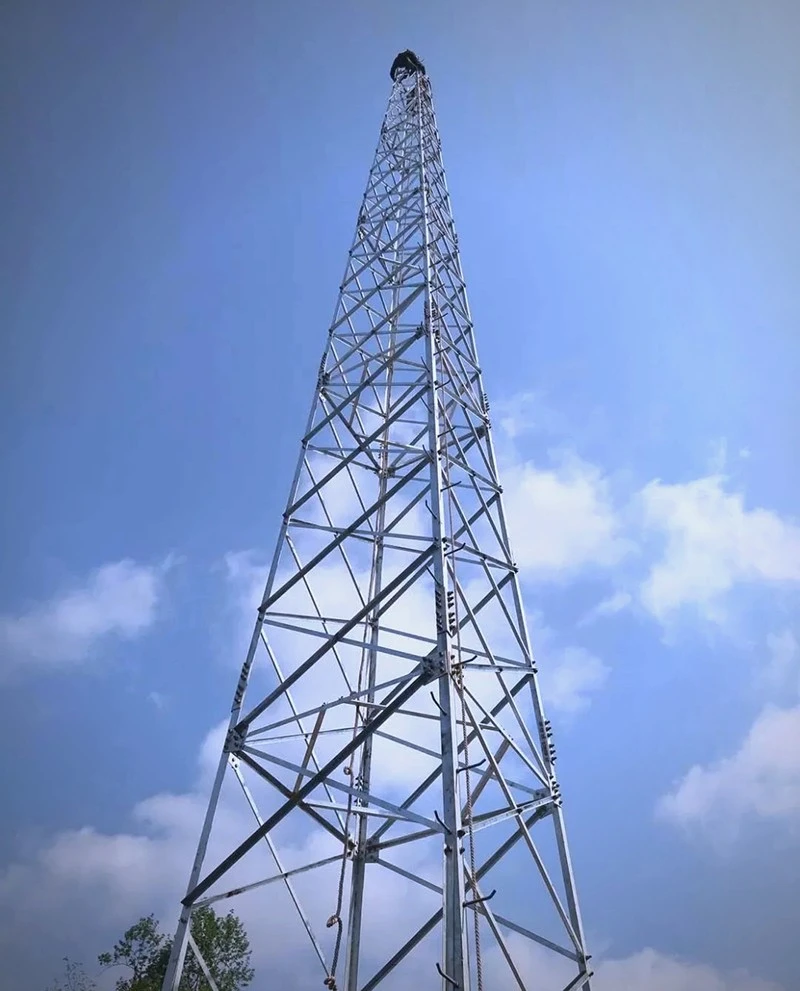

01 FOUR LEGS FOR MAXIMUM STABILITY
The Four Column Lightning Tower uses four angle steel legs in a square arrangement. This design is very stable. It is stronger than a three-leg tower. The four legs spread the load widely. This makes the tower suitable for large substations and critical facilities. It can withstand higher wind loads. It also supports larger lightning rods and equipment.
02 TECHNICAL SPECIFICATIONS
|
Parameter |
Specification |
|
Structure Type |
Four-leg square lattice |
|
Tower Height |
65 to 200 feet |
|
Leg Material |
Angle steel |
|
Cross-Section |
Square |
|
Lightning Rod |
Single or multi-point |
|
Down Conductor |
Copper or aluminum cable |
|
Grounding |
Connection to ground electrode |
|
Corrosion Protection |
Hot-dip galvanizing |
|
Applications |
Large substations, power plants, tank farms |
|
Foundation |
Four separate footings |
03 PRODUCTION EQUIPMENT
Square Cross-Section for Strength

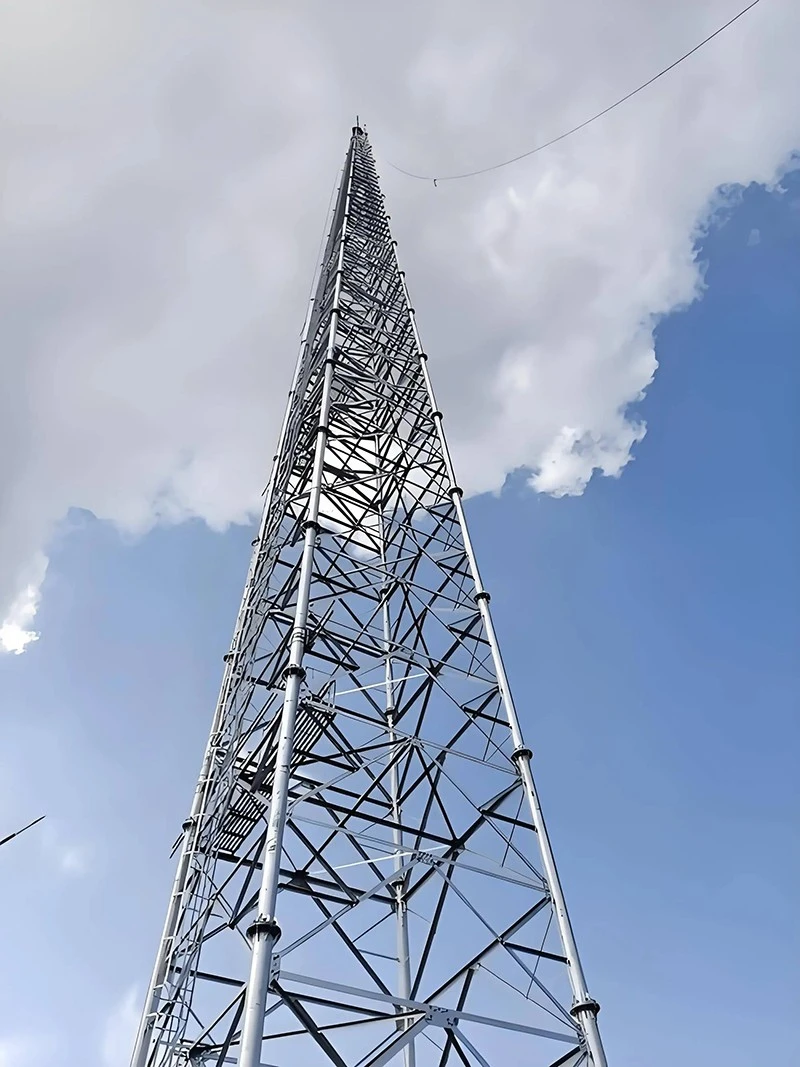

The Four Column Lightning Tower has a square cross-section. All four sides are identical. The cross members and diagonals are arranged symmetrically. This provides equal strength in all directions. The tower does not have a weak side. It performs well in areas with changing wind directions. The open truss design reduces wind pressure on the structure.
04 OVERALL VIEW
Precision Cutting and Drilling
Our CNC machines cut and drill all angle steel for the Four Column Lightning Tower. The holes are placed accurately. The members are cut to the exact length. We mark every piece with a part number. The part number matches the assembly drawing. This system makes assembly simple. Your crew follows the drawing and bolts the pieces together. No cutting or drilling is needed on site.
05 ON-SITE CONSTRUCTION DRAWINGS
Full Hot-Dip Galvanizing
All steel members of the Four Column Lightning Tower are hot-dip galvanized. This includes the legs, cross members, and connection plates. The coating is uniform and thick. It meets ASTM and ISO standards. The tower is protected from rust and corrosion. It will remain strong even in coastal or industrial environments.
06 CERTIFICATIONS
Important for Large Facilities

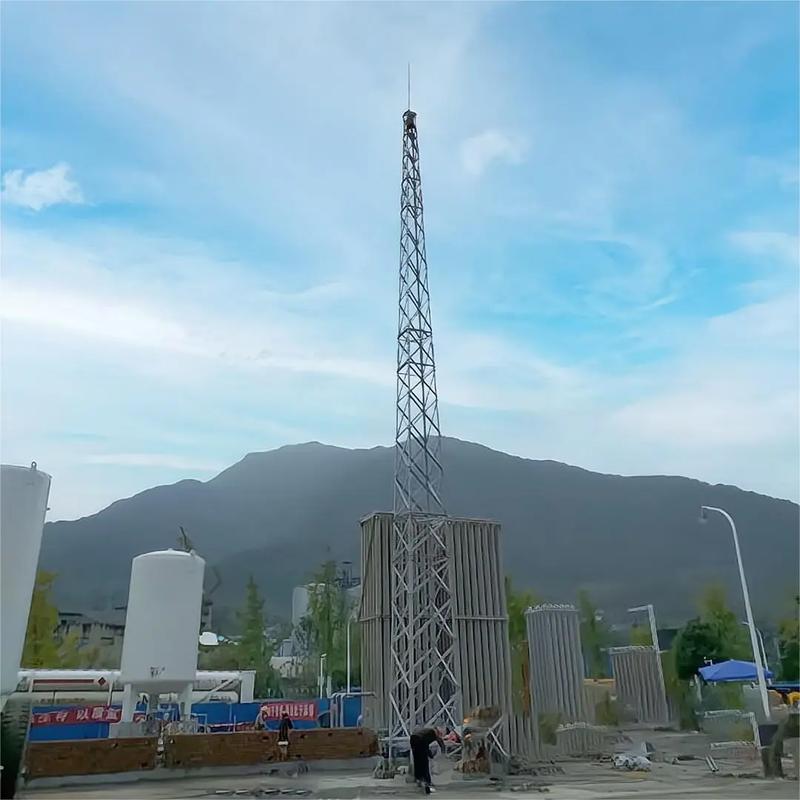

The Four Column Lightning Tower provides reliable protection for important facilities. Power plants, chemical plants, and large substations need strong protection. The four-leg design provides that strength. The tower stays standing in extreme weather. Your valuable equipment remains safe.
