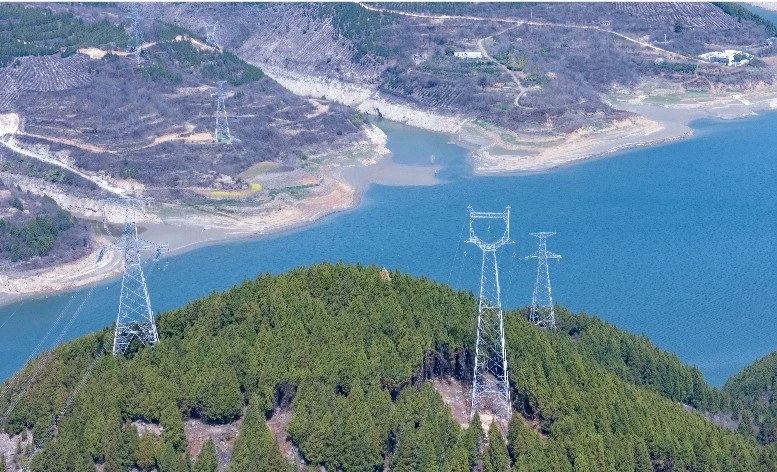

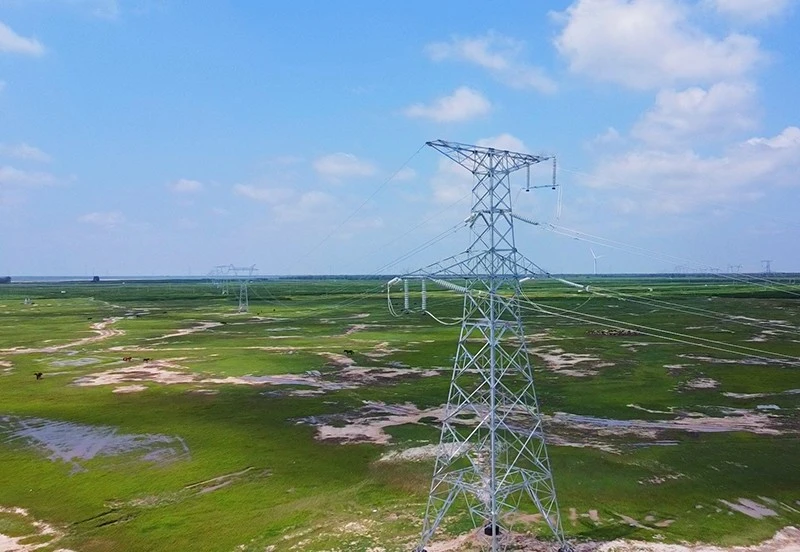

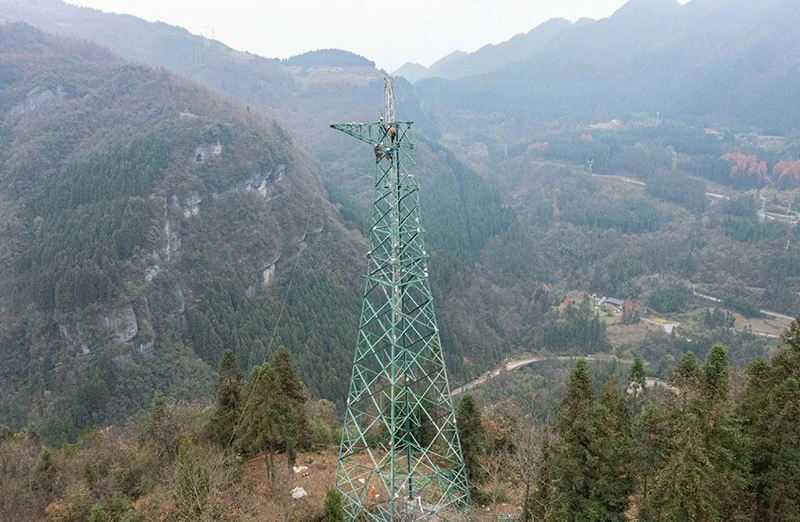

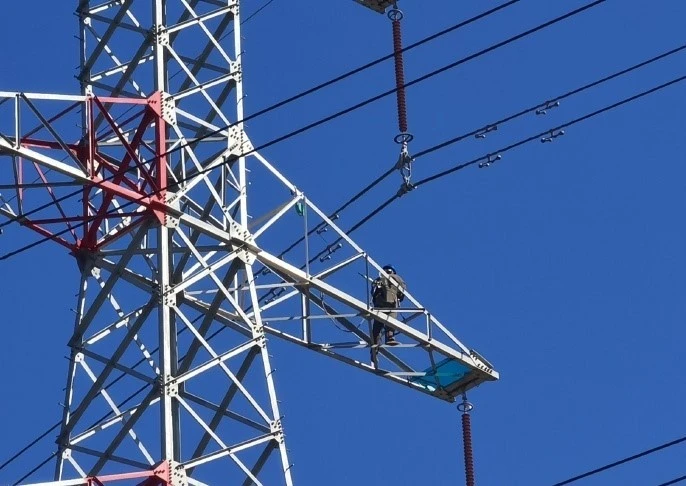

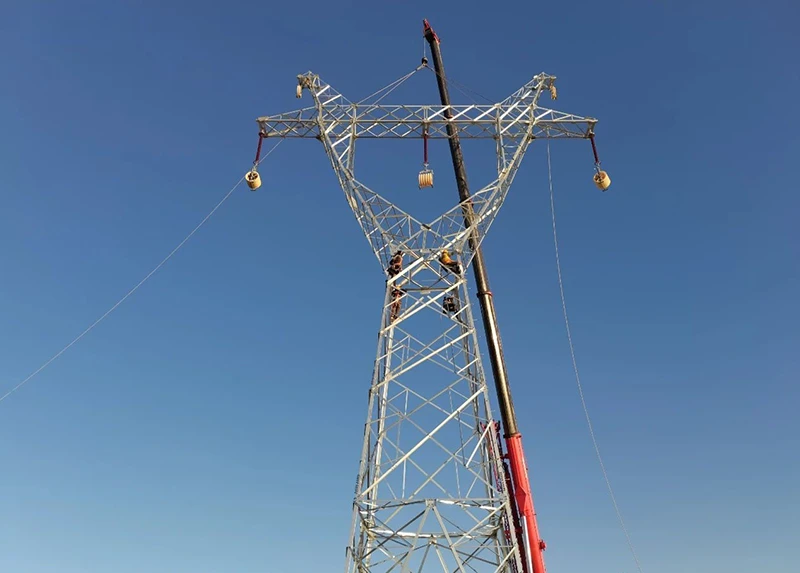

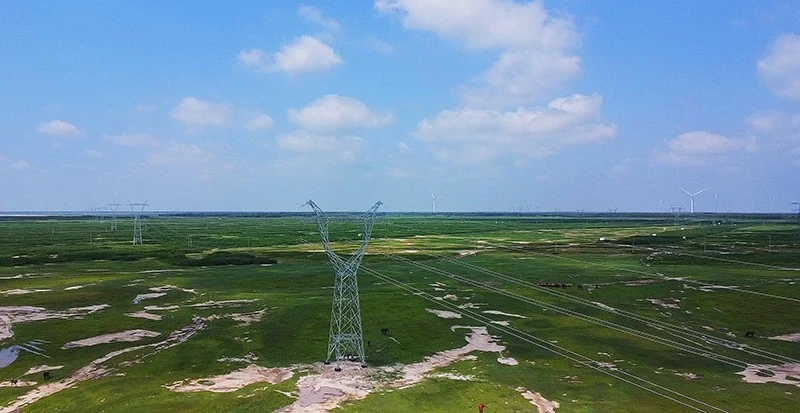

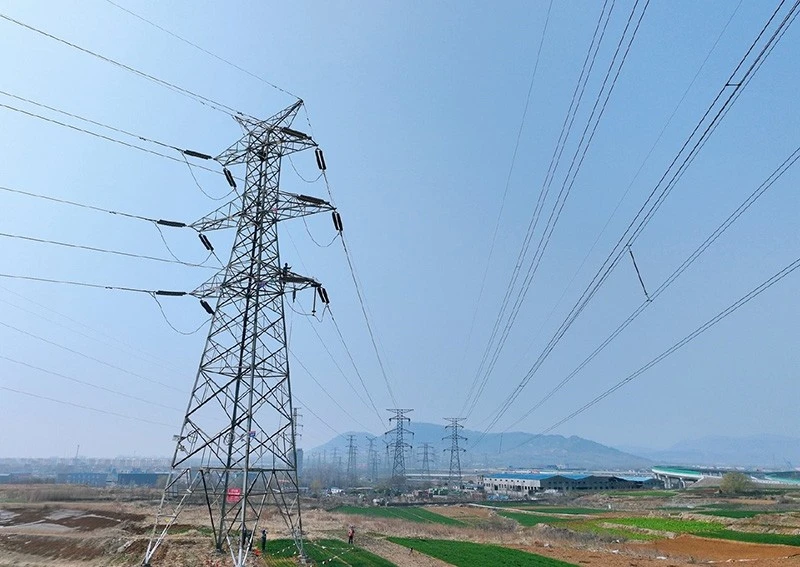

220kV Transmission Tower

01 THE BACKBONE OF HIGH-VOLTAGE TRANSMISSION NETWORKS

The 220kV Transmission Tower is a core component of high-voltage transmission backbone networks. It handles large-capacity, long-distance power transmission. These towers are taller and have more cross-arm layers than lower-voltage towers. They must withstand greater conductor tension. The structure is more complex and requires higher-strength steel and greater manufacturing precision. We use high-strength angle steel combined with detailed structural design. This ensures the 220kV Transmission Tower remains stable and reliable even in severe weather conditions.

Engineering Expertise For High-Voltage Projects
For 220kV Transmission Tower projects, our design team creates 3D models based on client tower designs. We build three-dimensional digital models using professional software. We automatically check electrical safety clearance and node collision for every member. The software directly generates CNC machining codes. We can provide the safest and most economical tower solutions based on different circuit numbers and conductor arrangements. Our designs meet client requirements for both reliability and cost-effectiveness.

Fully Automatic CNC Angle Steel Production Line

High-Power Laser Cutting Machine

Four-Column Press

Root Cleaning And Back-Gouging Machine

Hot-Dip Galvanizing Production Line

Sorting And Bundling Area

Manufacturing Complex Structures
The 220kV Transmission Tower presents manufacturing challenges due to large-section angle steel processing and complex node welding. Our CNC angle steel automatic production lines handle blanking, punching, cutting, and marking in one continuous computer-controlled process. Hole spacing accuracy is strictly controlled within 0.5mm. This is tighter than national standards. Our large, temperature-controlled automatic hot-dip galvanizing line follows the complete process: acid pickling for rust removal, slag cleaning, fluxing, and dipping in a 440-460°C zinc bath. Before shipment, we use a digital coating thickness gauge to test every component at multiple points. The zinc coating is dense and uniform.

1:1 Full-Scale Trial Assembly

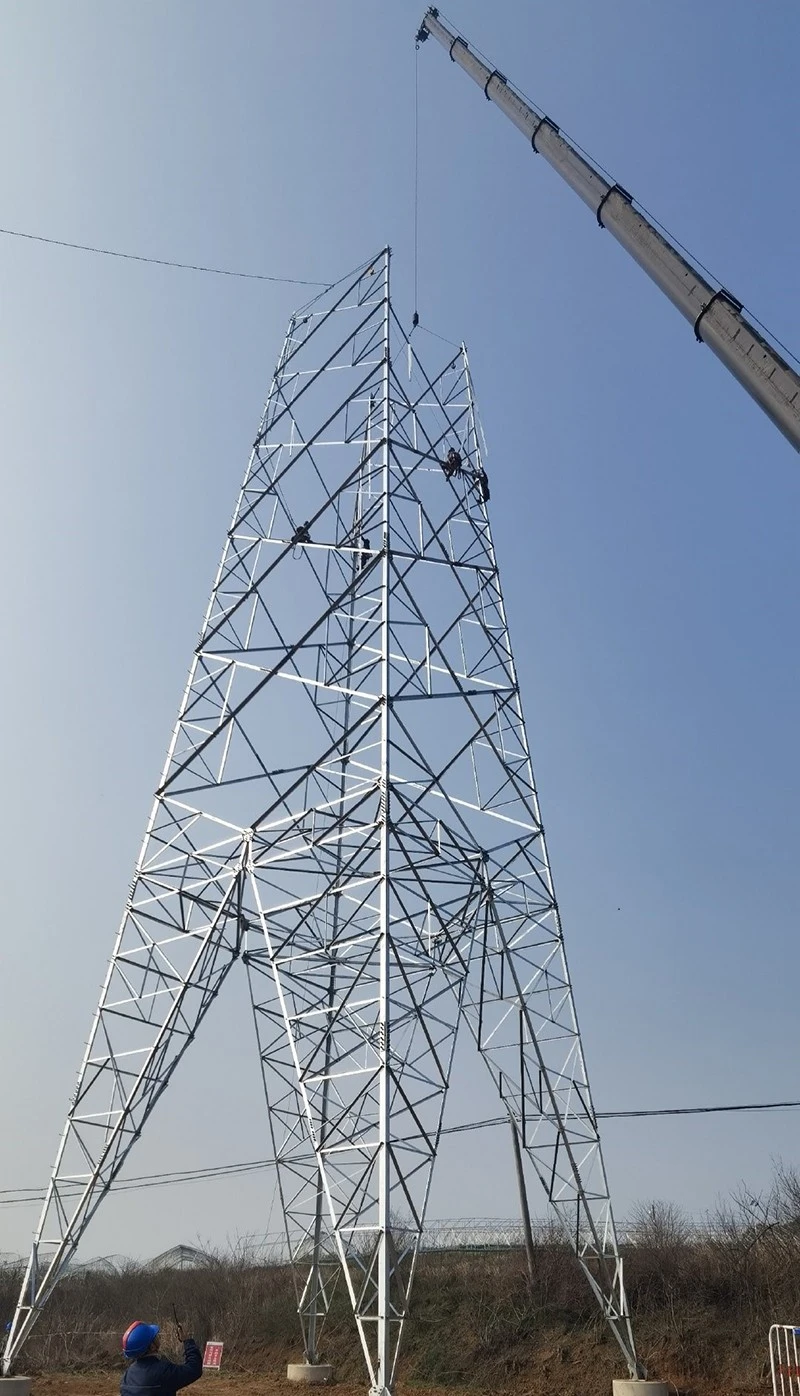

For custom tower types or first-production items of the 220kV Transmission Tower, we conduct 1:1 full-scale trial assembly at our dedicated assembly yard. We check the fit of tower leg corner joints, connections, and intersections of multi-leg diagonal members. This ensures smooth on-site assembly. We achieve "zero wrong holes, zero missing holes, zero cutting" during field erection. This trial assembly process is essential for large towers where field modifications are expensive and time-consuming.

Rigorous Testing And Quality Assurance
We apply stricter testing standards to the 220kV Transmission Tower than to conventional products. We purchase steel from qualified mills that meet national standards. We implement an incoming material re-inspection process. Every batch of steel undergoes sampling inspection with documented quality records. Critical welds undergo ultrasonic or magnetic particle testing. We conduct periodic destructive testing to verify actual load-bearing capacity meets design requirements. Our testing center has advanced equipment. We can independently complete full performance tests from materials to finished products.

Raw Material Quality Control
We purchase steel only from qualified mills that meet national standards. Every batch undergoes incoming material re-inspection. We check chemical composition and mechanical properties. All inspection results are documented for traceability. This ensures every 220kV Transmission Tower starts with high-quality raw materials. Our quality control system catches any material issues before production begins.

Large Project Experience
Our core team has deep experience with multiple 220kV Transmission Tower projects in China. These include new energy transmission projects in Hunan and Shanxi. These projects typically had tight schedules and heavy workloads. We successfully overcame challenges through detailed production scheduling and multi-team coordination. Large component processing and galvanizing coordination were complex. We delivered thousands of tons of tower materials on time and to specification. Our performance earned the trust of EPC contractors. We understand the demands of large-scale transmission projects. We are equipped to handle them professionally.
