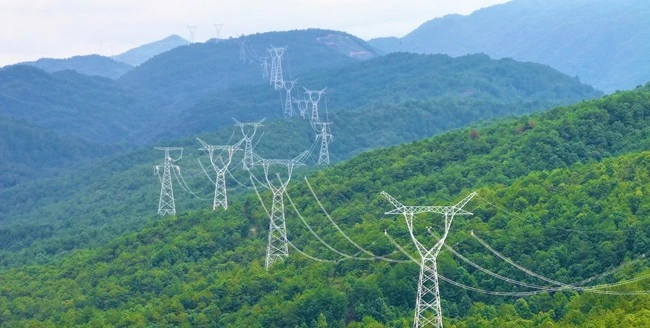

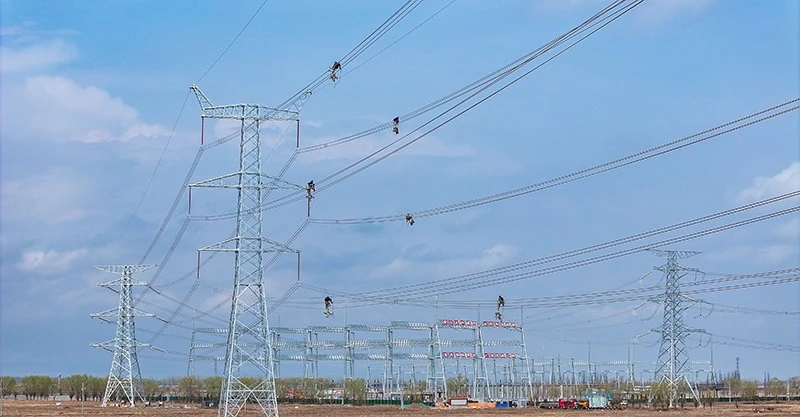

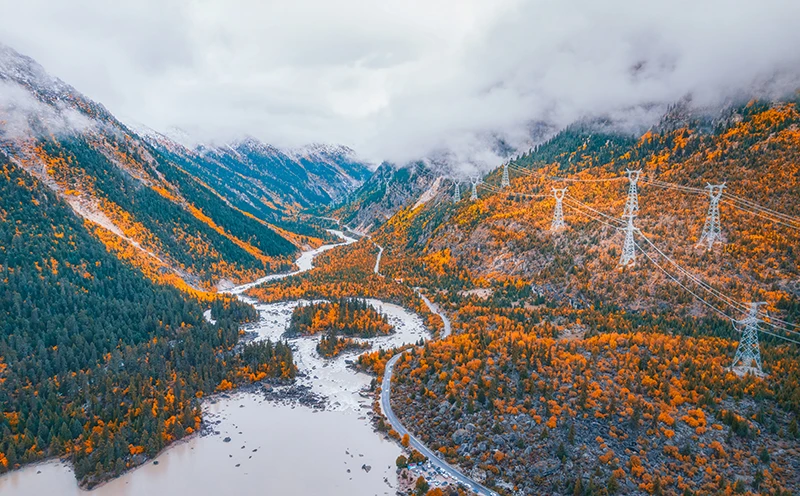

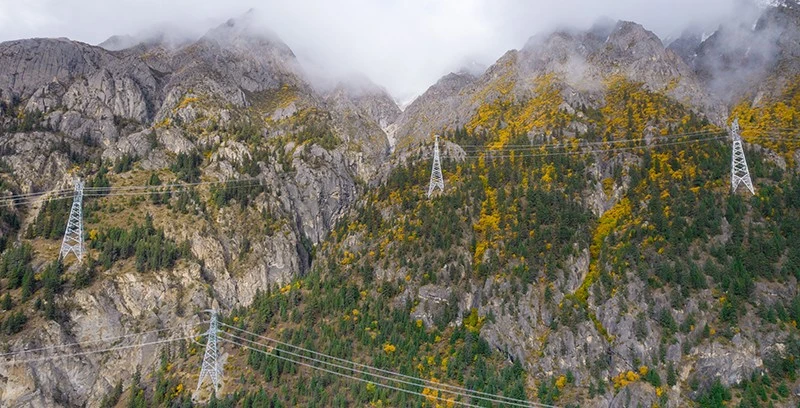

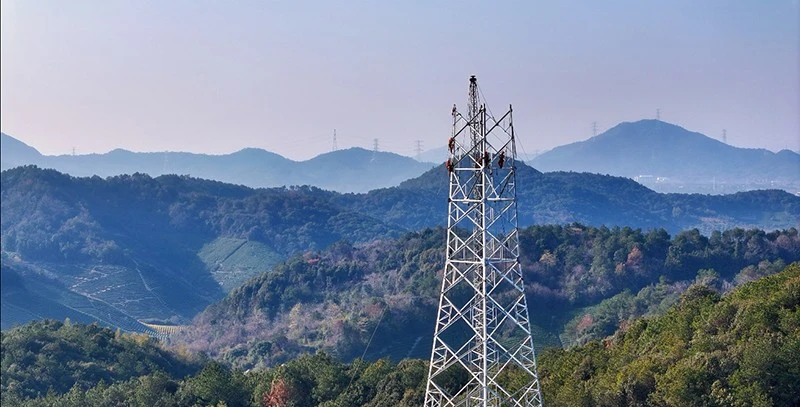

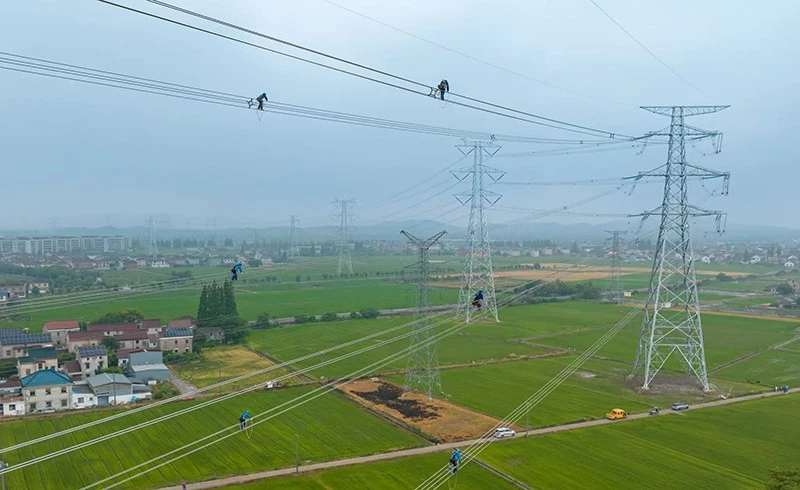

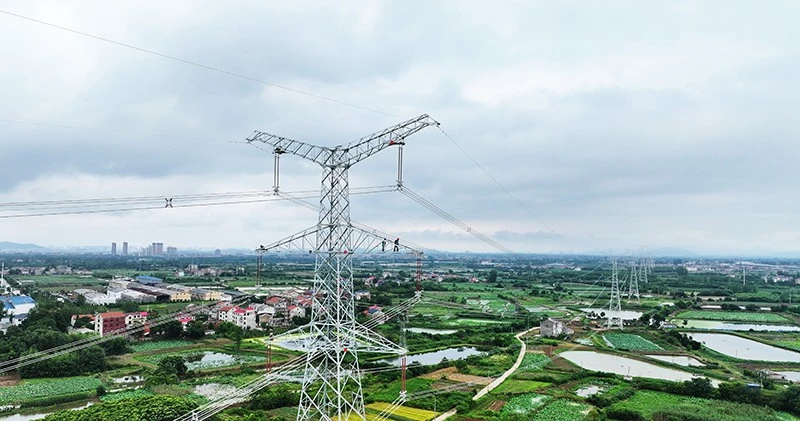

500kV Transmission Tower

01 BUILT FOR MASSIVE POWER TRANSFER PROJECTS

The 500kV Transmission Tower serves large hydroelectric and thermal power plants. These plants send electricity to major cities hundreds of miles away. The towers are tall, often reaching heights of 300 feet or more. A single tower can use hundreds of tons of steel. This is a significant investment. We understand that delays or errors can cost your project millions. We treat the 500kV Transmission Tower with the highest level of attention.

Managing Unbalanced Tension and Uneven Ice
One of the biggest risks for this tower is uneven ice shedding. Ice can melt on one side of the line but not the other. This creates a twisting force. The 500kV Transmission Tower must resist this torsion. We design the cross-bracing and diagonal members specifically for these forces. We also simulate broken conductor conditions. If a wire snaps, the sudden release of tension creates a shock load. Our tower design absorbs this shock without collapsing. We test these scenarios in our software before we cut any steel.

Fully Automatic CNC Angle Steel Production Line

High-Power Laser Cutting Machine

Four-Column Press

Root Cleaning And Back-Gouging Machine

Hot-Dip Galvanizing Production Line

Sorting And Bundling Area

Full-Scale Trial Assembly for Critical Sections
We do not rely only on computer models. For the 500kV Transmission Tower, we perform a full-scale trial assembly of critical sections. We set up the tower segments on our assembly yard. We check the fit of every connection plate. We verify that bolt holes align perfectly. This step eliminates surprises at your site. Your construction crew will not need to ream holes or cut steel in the field. This saves weeks of installation time. It also reduces labor costs significantly.

On-Site Technical Support

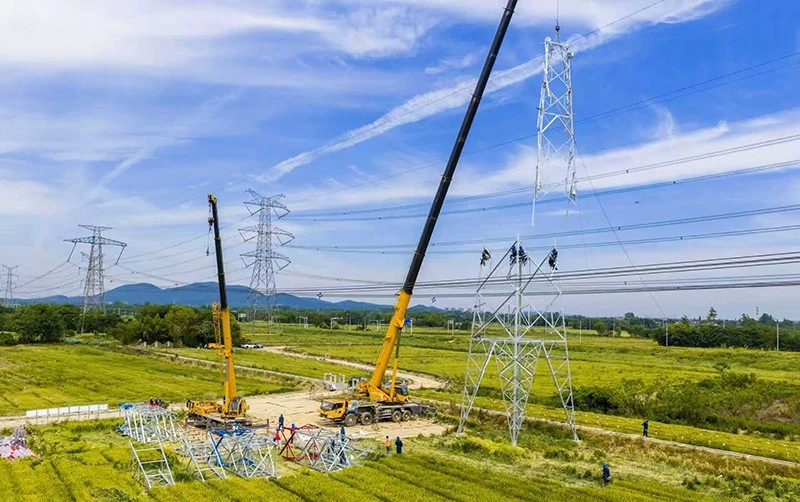

We can send our engineers to your site for the 500kV Transmission Tower installation. They help your crew with hoisting plans and bolt tightening sequences. Proper tightening torque is critical for this heavy tower. Our engineers show the crew the correct procedure. This support is optional. However, many clients choose it because it speeds up construction. We want your tower to stand safely for its entire 40-year service life.

Sourcing High-Strength, Heavy-Section Steel
Steel for the 500kV Transmission Tower is not standard inventory. We order specific grades like Q420 or Q460. These steels are strong but require careful welding. Our procurement team books these materials early. We secure the supply chain well before production starts. This prevents bottlenecks. We also test every incoming plate for chemical composition. We reject any plate that does not match the certificate. Your tower will have consistent strength throughout.
