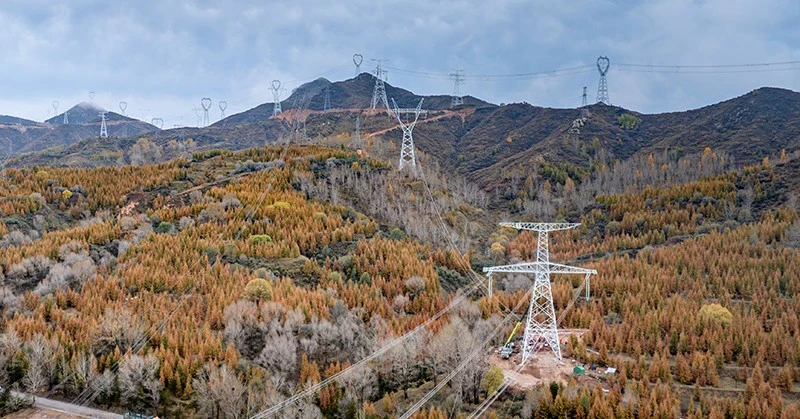

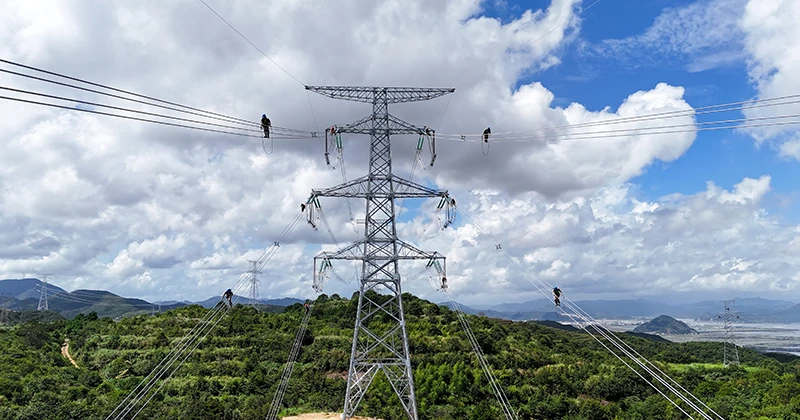

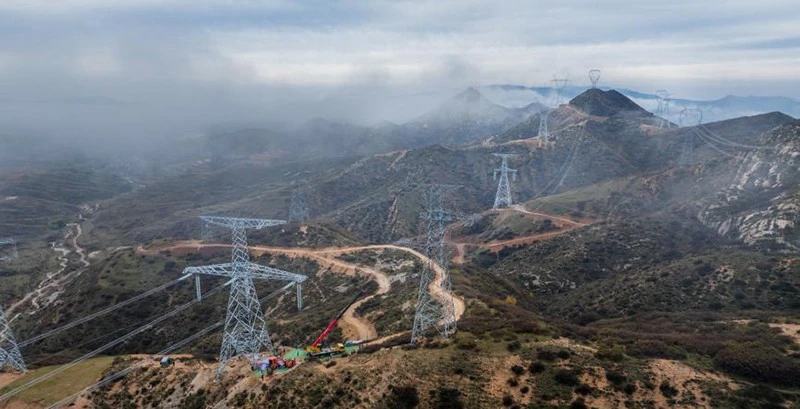

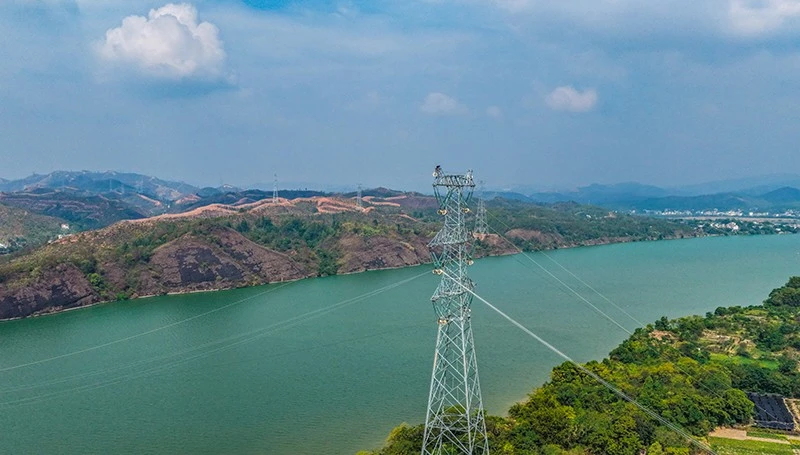

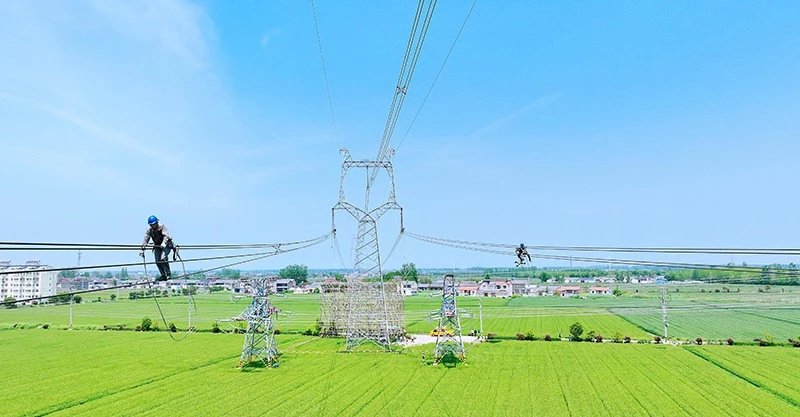

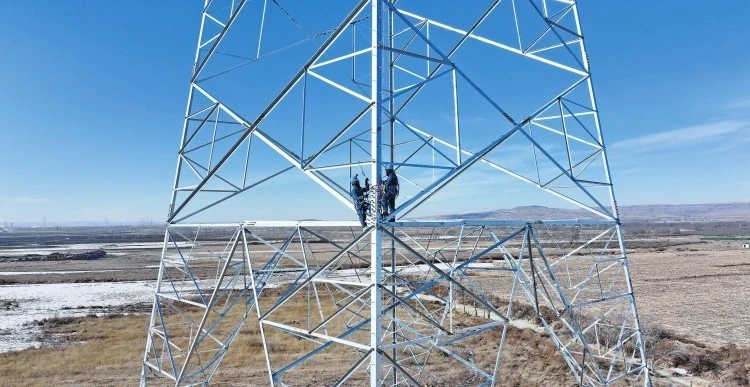

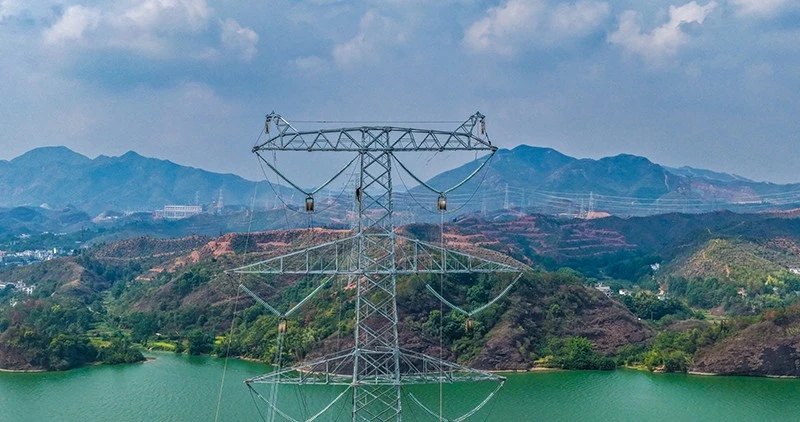

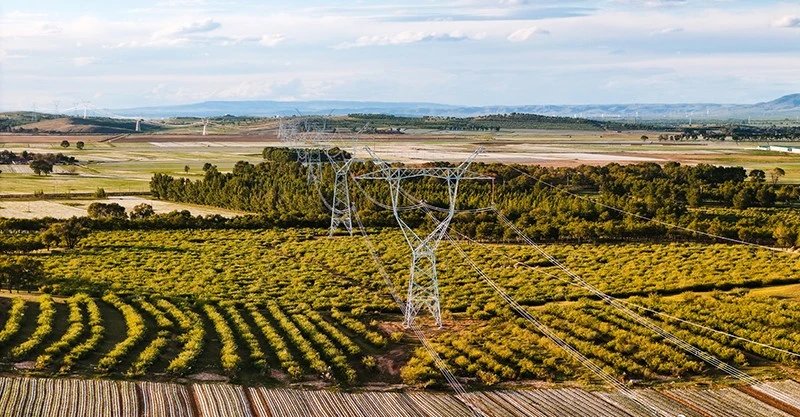

400kV Transmission Tower

01 THE BRIDGE BETWEEN REGIONAL POWER SYSTEMS

The 400kV Transmission Tower operates at extra-high voltage. It connects large power grids across regions. This tower carries massive amounts of electricity over very long distances. The structure uses a wide-base four-leg design. This makes the tower extremely stable. However, it also makes each tower very heavy. The members are large. The steel plates are thick. We are equipped to handle these large components. Our factory has heavy-duty cranes and large-capacity drilling machines specifically for this type of work.

Controlling Heat During Thick-Plate Welding
Thick steel plates present a specific challenge. They can develop cracks if the welding temperature is not controlled. For the 400kV Transmission Tower, we apply pre-heating before we start any critical weld. We also use a slow cooling process after the weld is complete. This prevents hydrogen-induced cracking. Our welders monitor the interpass temperature continuously. We record these temperatures in our quality logs. This extra care ensures the weld remains strong for decades. It is not just about making a weld. It is about making a weld that will not fail under heavy electrical loads.

Fully Automatic CNC Angle Steel Production Line

High-Power Laser Cutting Machine

Four-Column Press

Root Cleaning And Back-Gouging Machine

Hot-Dip Galvanizing Production Line

Sorting And Bundling Area

Dipping Large Members in a Deep Galvanizing Bath
Galvanizing extra-long and extra-wide members requires a large bath. Our galvanizing line has a deep zinc kettle. This allows us to dip large tower sections completely. We do not need to cut them into smaller pieces just for galvanizing. This keeps the protective layer continuous. We pay special attention to the inside of hollow sections and hard-to-reach corners. We use a digital thickness gauge to test these critical spots. Every part of the 400kV Transmission Tower receives full protection against rust.

Meeting Extreme Loading Conditions
This tower supports four or more conductor bundles. The weight is substantial. Ice buildup in winter can add even more weight. Our engineers use advanced software to simulate these combined loads. We design the 400kV Transmission Tower to handle ice loads of up to 20 millimeters. We also account for unbalanced tension. This happens when one conductor breaks. The tower must remain standing even in that event. Our design passes these extreme scenarios. We build safety into every joint and member.

Coordination with Your Project Team
We act as a project partner, not just a supplier. For the 400kV Transmission Tower, we share our production schedule with your team. We align our deliveries with your construction milestones. If you need to make a change, we respond quickly. We provide technical advice on material substitution and joint optimization. This reduces your project risk. You get a tower that fits your foundation exactly.
