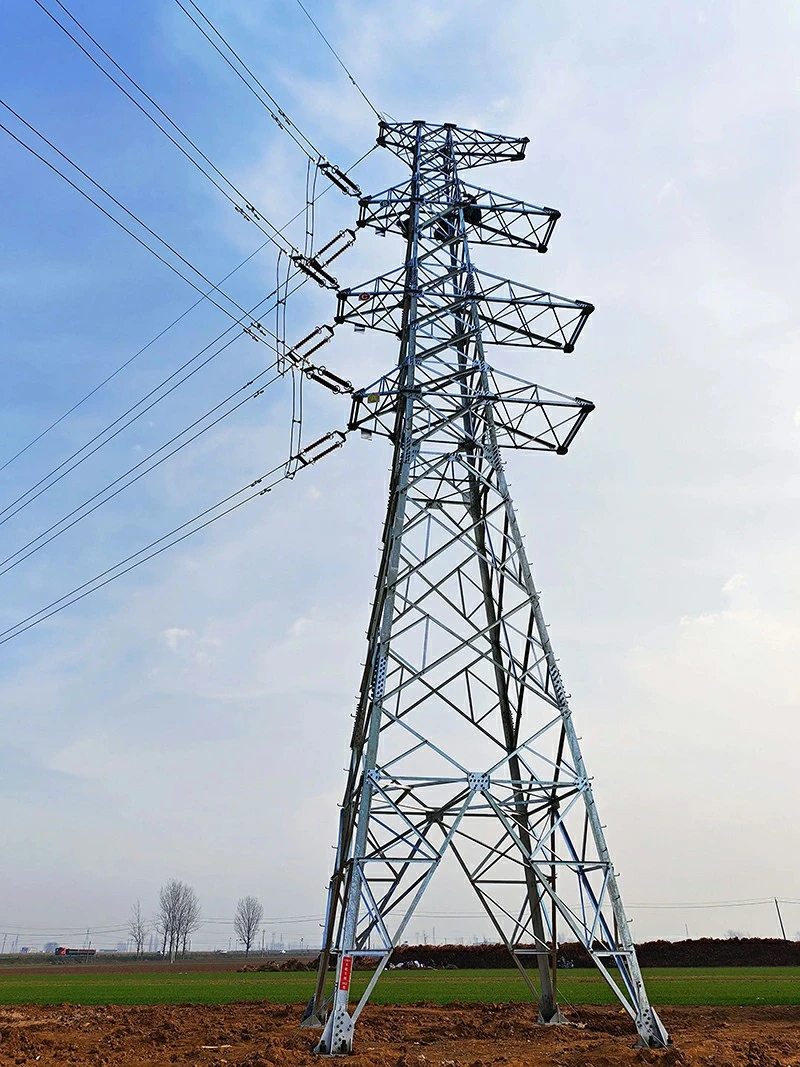

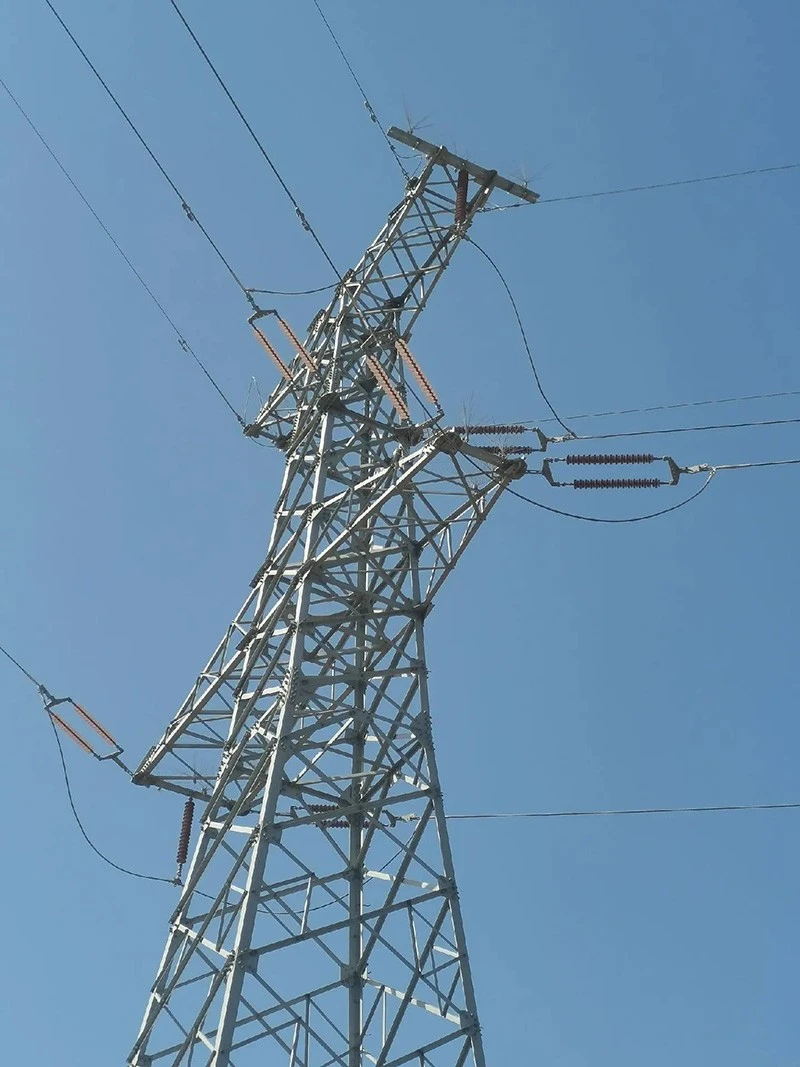

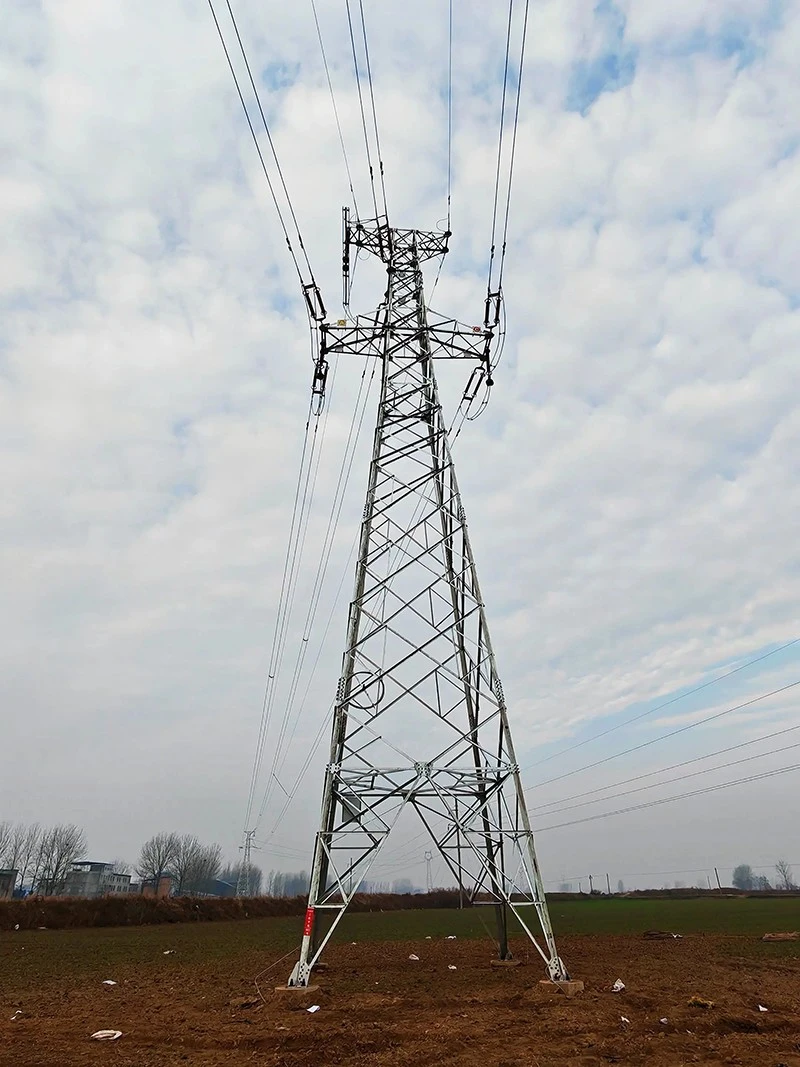

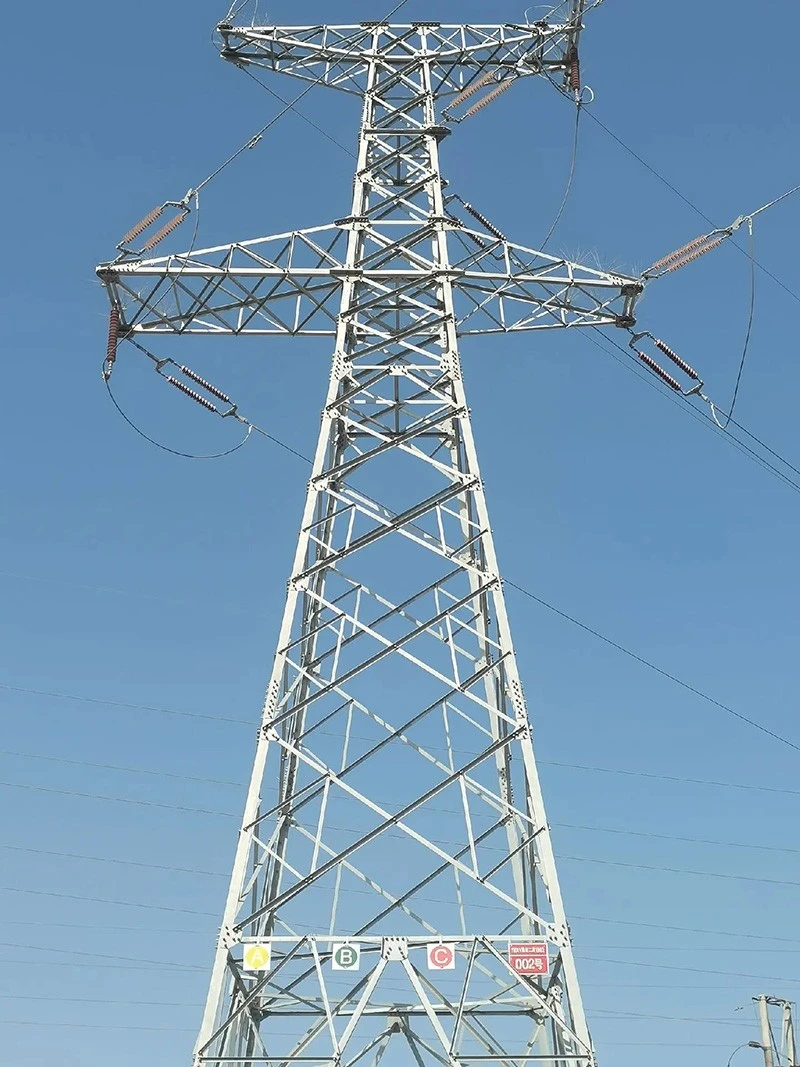

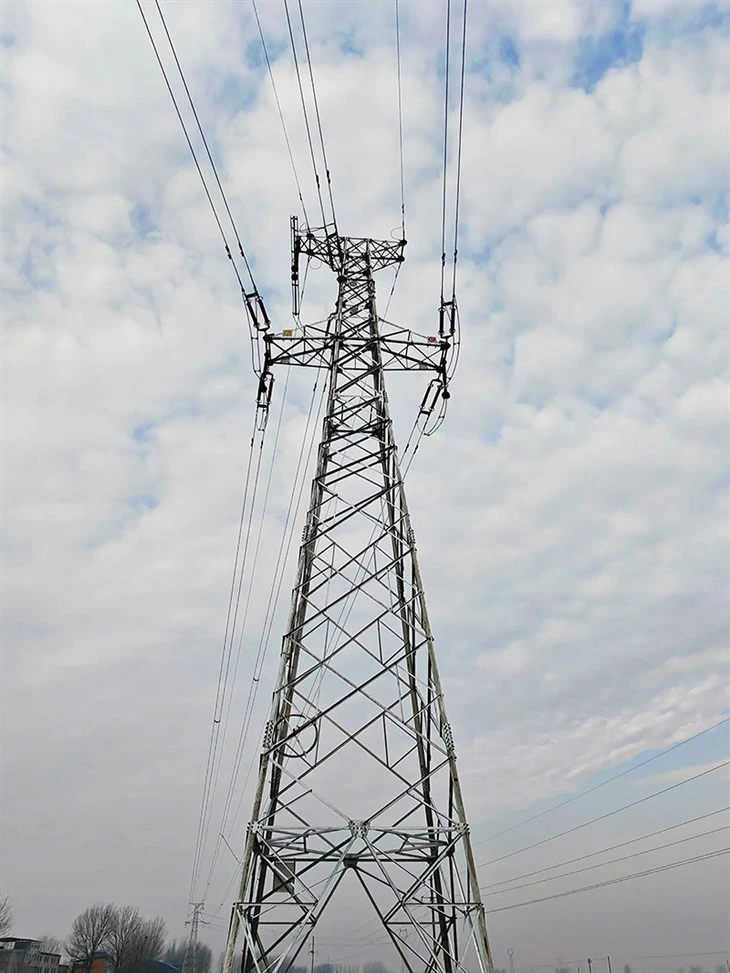

132kV Transmission Tower

01 THE INTERNATIONAL STANDARD FOR HIGH-VOLTAGE TRANSMISSION

The 132kV Transmission Tower is widely used in many countries around the world. It is particularly common in power grids across Commonwealth nations and the Middle East. The design of this tower is similar to the 110kV tower. However, it requires wider cross-arms and larger tower body dimensions to meet higher insulation coordination and electrical clearance requirements. The 132kV Transmission Tower must comply with different international safety standards. Our team has extensive experience with international projects. We can handle 132kV tower orders designed to IEC, BS, or ANSI standards.

Deep Understanding Of International Standards
We have deep knowledge of load combinations, material specifications, and galvanizing requirements under various international standards for the 132kV Transmission Tower. Our engineers are familiar with IEC 60652 for loading tests on overhead line towers. We also understand BS 4 for structural steel sections. This expertise ensures our products pass rigorous inspections on international engineering projects. We have supplied 132kV Transmission Towers to projects in multiple countries. Each project required strict adherence to local standards and specifications.

Precision In Every Detail
During the modeling phase for the 132kV Transmission Tower, our engineers calculate bolt quantities and torque values for each node with precision. This ensures optimal structural force distribution. For critical components like cross-arms, we use specialized fixtures for positioning and welding. This guarantees accurate geometric dimensions. In welding, we select matching welding materials and parameters based on steel thickness and joint type. Our welders follow standardized procedures. We verify welding quality through continuous non-destructive testing. All joints meet design requirements for tensile, bending, and impact mechanical properties.

Fully Automatic CNC Angle Steel Production Line

High-Power Laser Cutting Machine

Four-Column Press

Root Cleaning And Back-Gouging Machine

Hot-Dip Galvanizing Production Line

Sorting And Bundling Area

CNC Processing With Tight Tolerances
Our CNC angle steel automatic production lines handle blanking, punching, cutting, and marking in one continuous computer-controlled process. Hole spacing accuracy is strictly controlled within 0.5mm. This is tighter than national standards. Our large, temperature-controlled automatic hot-dip galvanizing line follows the complete process: acid pickling for rust removal, slag cleaning, fluxing, and dipping in a 440-460°C zinc bath. Before shipment, we use a digital coating thickness gauge to test every component at multiple points. The zinc coating is dense, uniform, and free from missing spots or zinc lumps. Hammer tests confirm coating adhesion. The galvanized layer will not peel off during transport or erection.

1:1 Trial Assembly For Quality Verification
For custom tower types or first-production items of the 132kV Transmission Tower, we conduct 1:1 full-scale trial assembly at our dedicated assembly yard. We check the fit of tower leg corner joints, connections, and intersections of multi-leg diagonal members. This ensures smooth on-site assembly. We achieve "zero wrong holes, zero missing holes, zero cutting" during field erection. This trial assembly process is especially important for international projects where on-site corrections are costly and time-consuming.

Quality Traceability And Project Management
We create an independent quality file for every 132kV Transmission Tower project. All records are stored electronically. This includes material certificates and inspection records from every production step. Our project managers maintain close communication with clients. We provide regular production schedule updates. We coordinate third-party inspections to ensure projects stay on track. We support SGS, BV, or client-appointed inspection agencies for independent product verification.

International Logistics And Field Service
We have extensive experience in export packaging for the 132kV Transmission Tower. For large components, we design custom packaging solutions. We use steel frame supports and waterproof covering. This prevents deformation and rust during long ocean voyages. We provide detailed bilingual packing lists and component identification. This reduces inspection time at the destination port and speeds up on-site sorting. Our service eliminates communication and logistics barriers in international procurement. Clients experience convenient one-stop purchasing.
