01 A SINGLE POLE SOLUTION FOR LIGHTNING PROTECTION

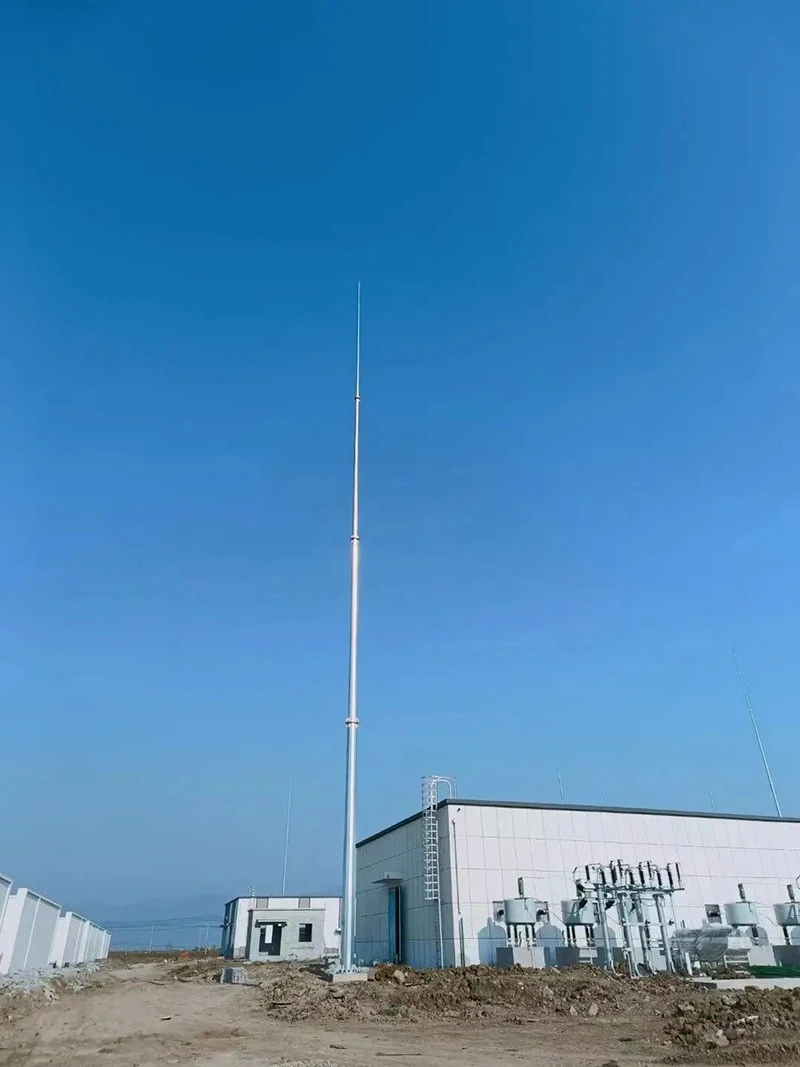

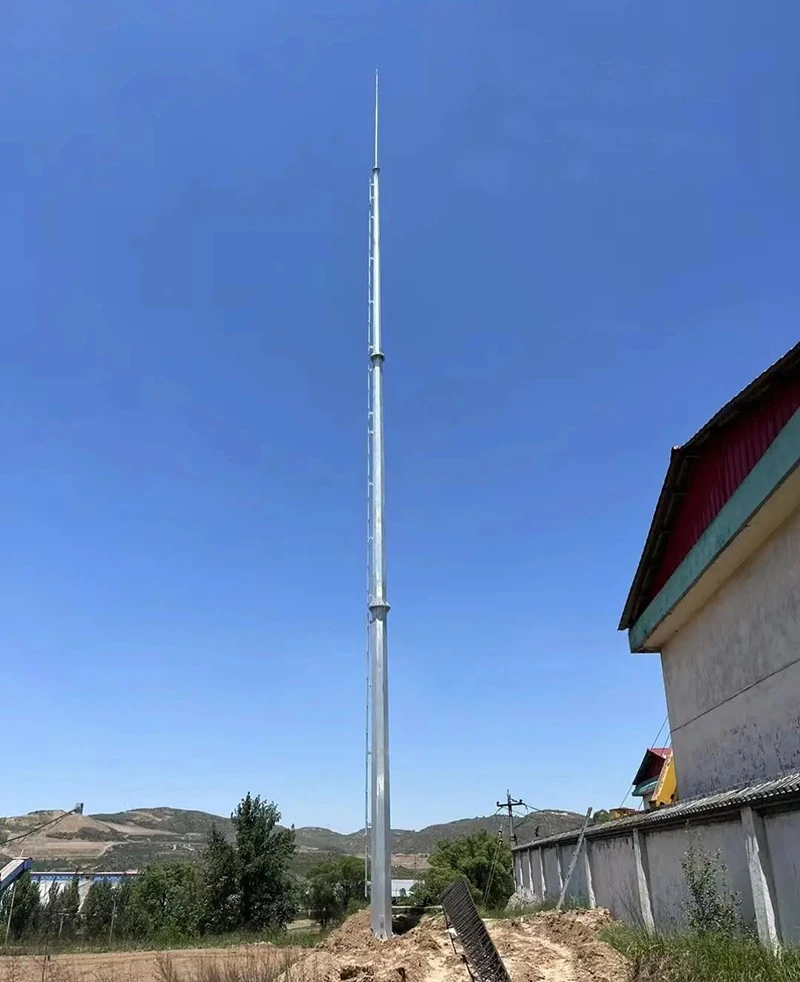

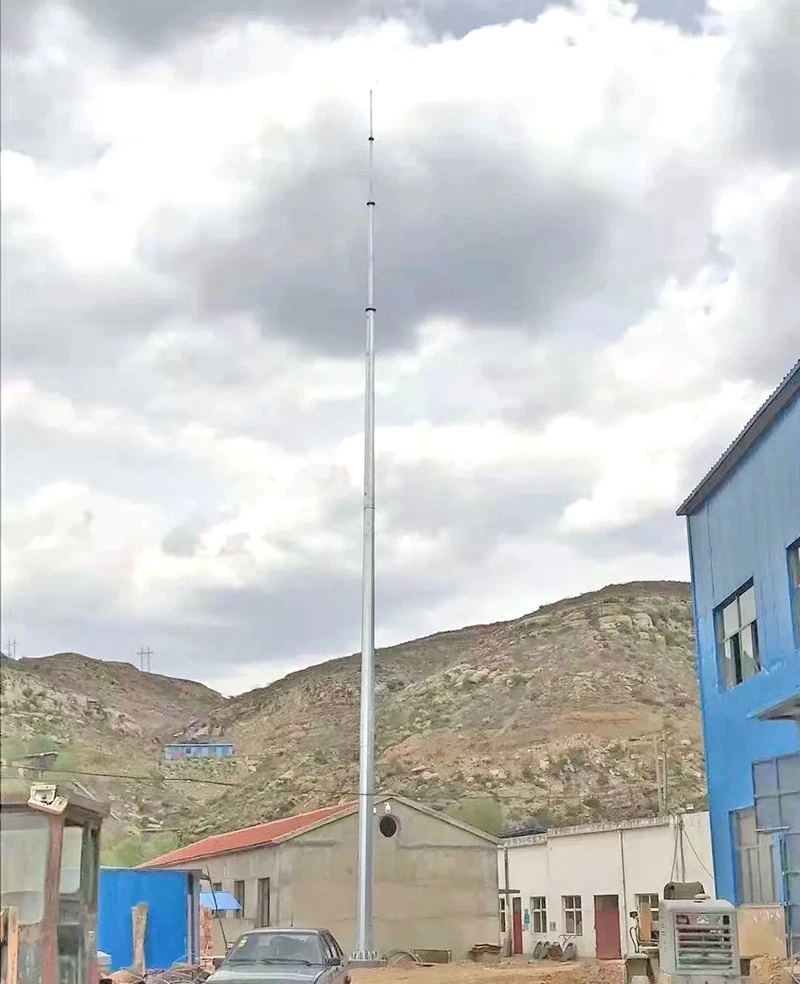

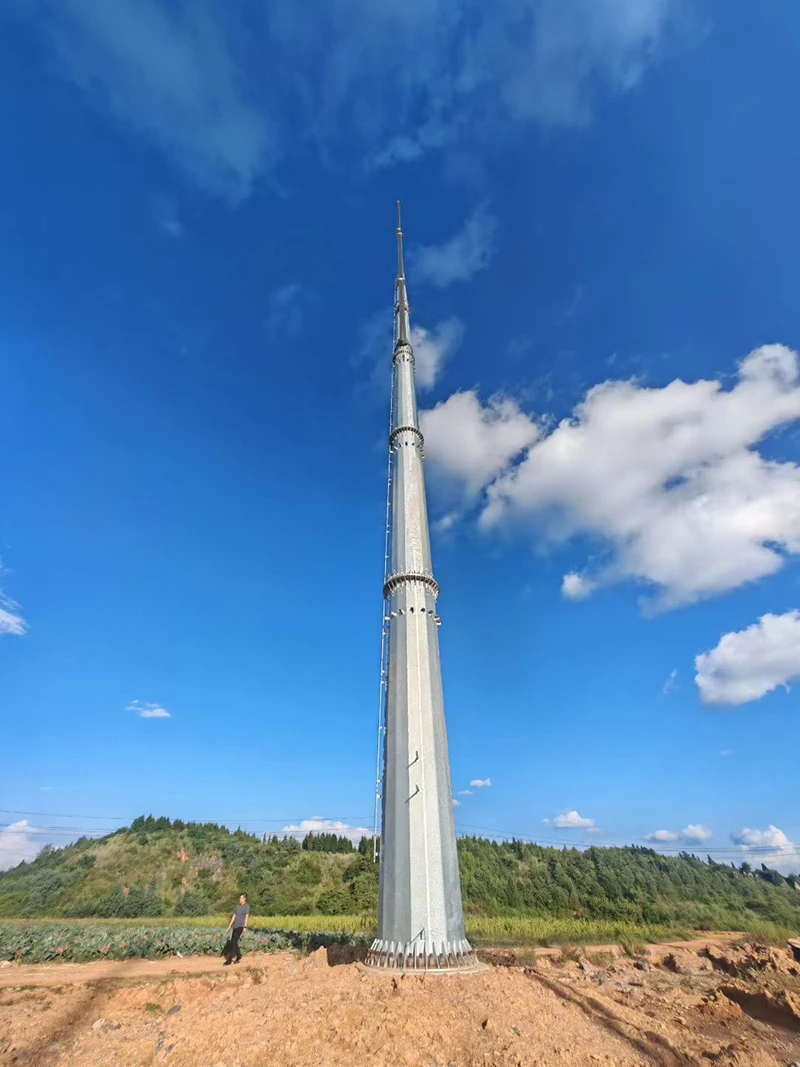

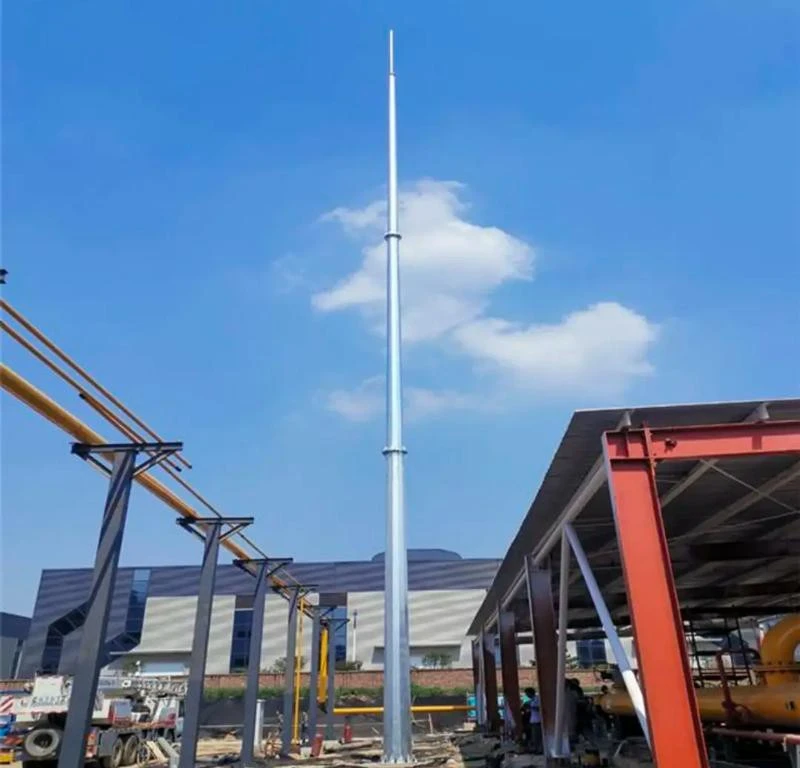

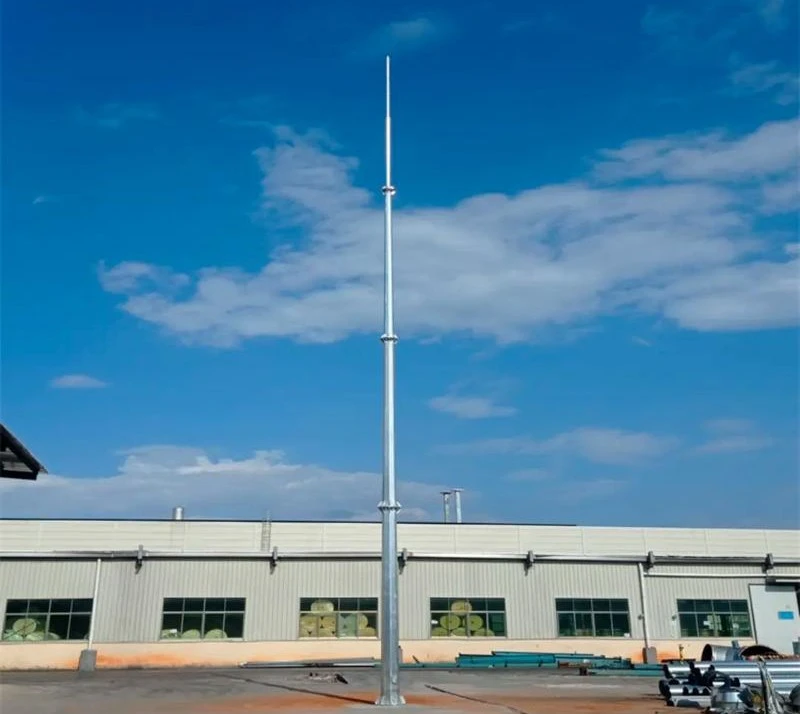

The Monopole Lightning Tower is a single tapered steel tube. It is simpler than a lattice tower. The design is clean and uses less steel. The tower is narrower at the top and wider at the base. A lightning rod sits at the top. The tower provides protection for buildings, substations, and communication sites. It is a good choice when space is limited or appearance matters.
02 TECHNICAL SPECIFICATIONS
|
Parameter |
Specification |
|
Structure Type |
Single tapered steel tube |
|
Tower Height |
50 to 130 feet |
|
Base Diameter |
Based on height and load |
|
Top Diameter |
Matches lightning rod mount |
|
Lightning Rod |
Included |
|
Down Conductor |
Internal or external |
|
Corrosion Protection |
Hot-dip galvanizing |
|
Applications |
Substations, rooftops, base stations |
|
Foundation |
Small concrete pad |
|
Installation |
Bolted base |
03 PRODUCTION EQUIPMENT
Less Space, Cleaner Appearance
The Monopole Lightning Tower takes up very little ground space. The base is small compared to a lattice tower. This is useful in crowded substations or on building rooftops. The single pole looks neat. It does not have the busy appearance of a truss structure. Many clients choose this design for urban locations. It blends in better with the surroundings.
04 OVERALL VIEW
Rolled and Welded for Strength
We manufacture the Monopole Lightning Tower by rolling steel plate into a cone shape. The longitudinal seam is welded with automatic submerged arc welding. This weld is strong and smooth. After welding, we check the straightness of the pole. We straighten it if needed. The final pole is true and straight. The top flange is welded precisely to hold the lightning rod.
05 ON-SITE CONSTRUCTION DRAWINGS
Galvanizing the Full Length
The Monopole Lightning Tower is hot-dip galvanized. Our galvanizing kettle is large enough for the full tower length. The coating is continuous from top to bottom. There are no uncoated sections. This protects the entire tower from rust. The galvanized surface is durable and requires little maintenance. It will last for many years.
06 CERTIFICATIONS
Quick Installation for Urgent Needs

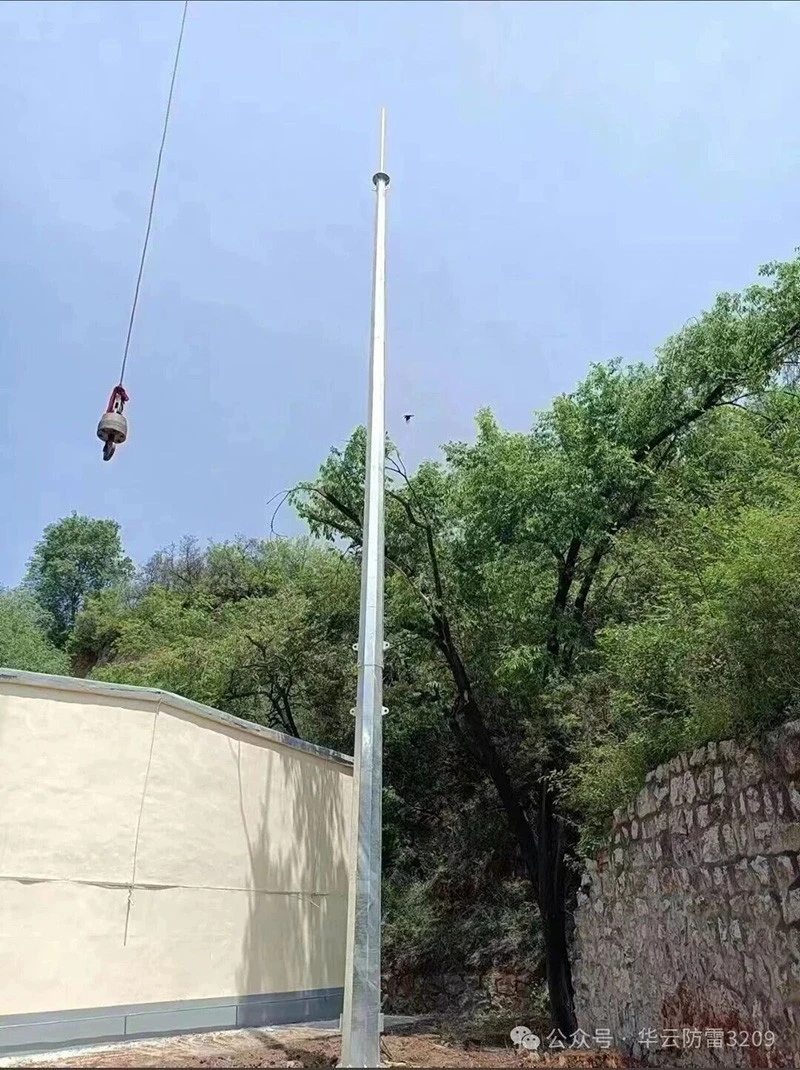

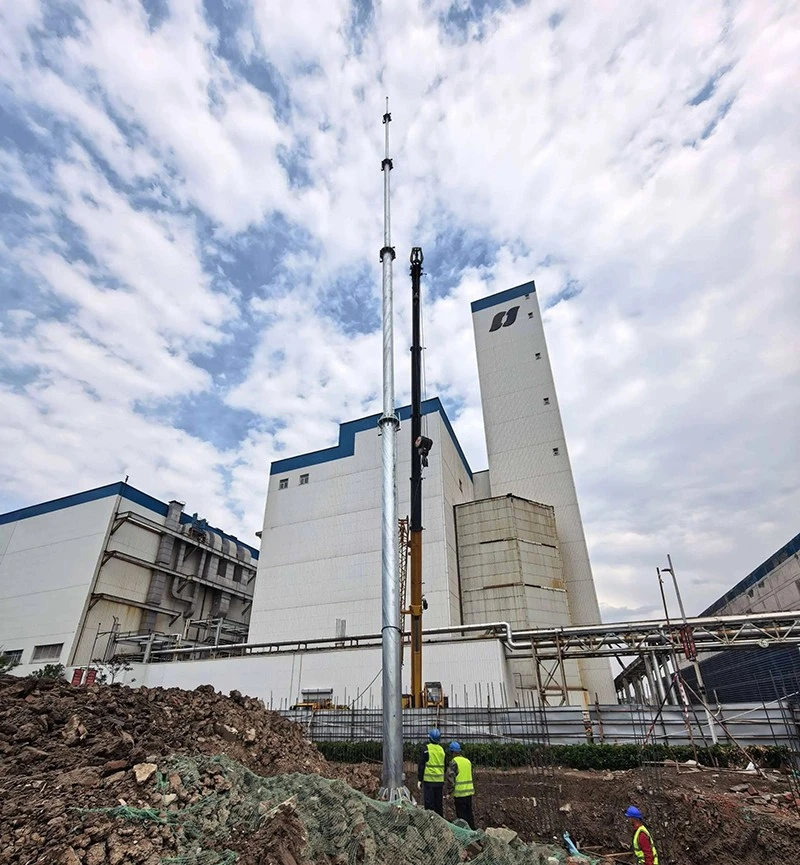

The Monopole Lightning Tower is quick to install. It arrives as one piece or in two sections. The base bolts to a concrete foundation. Your crew can erect it in a few hours. This is important when lightning protection is needed urgently.
