Multi Pole Steel Structure

01 THREE OR MORE COLUMNS FOR HEAVY LOADS

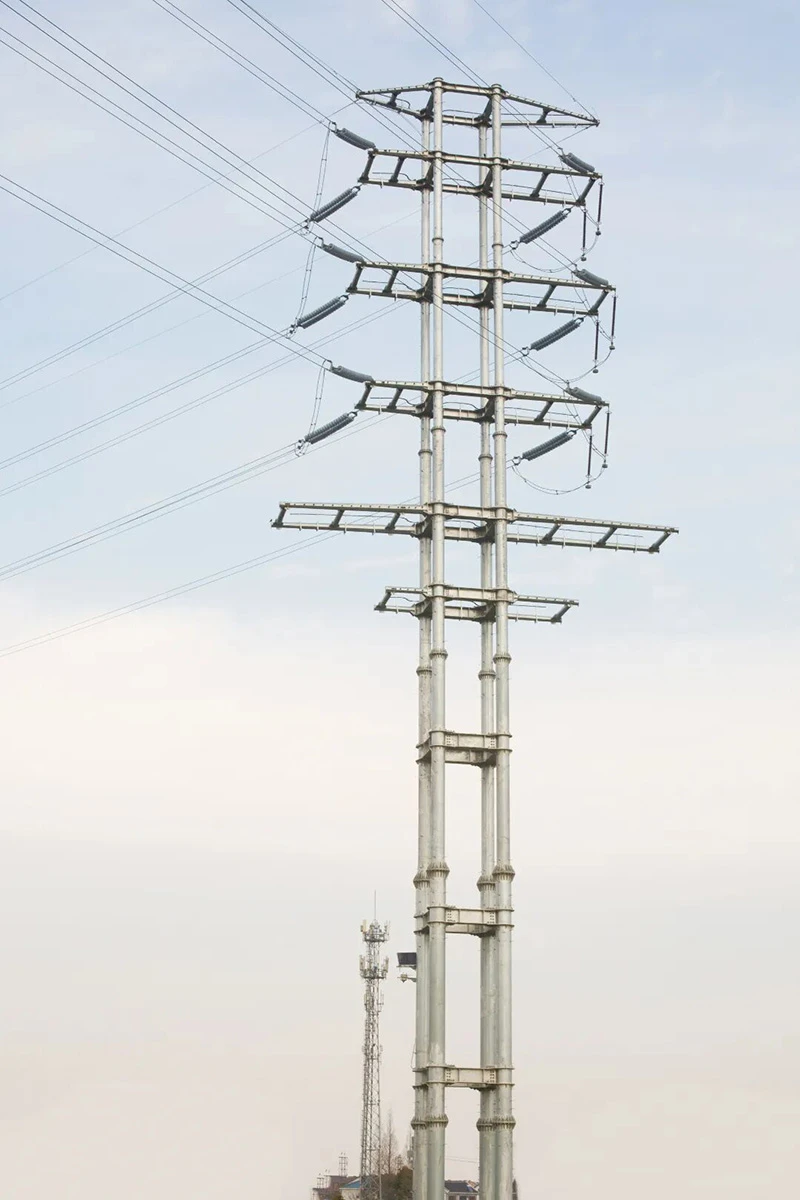

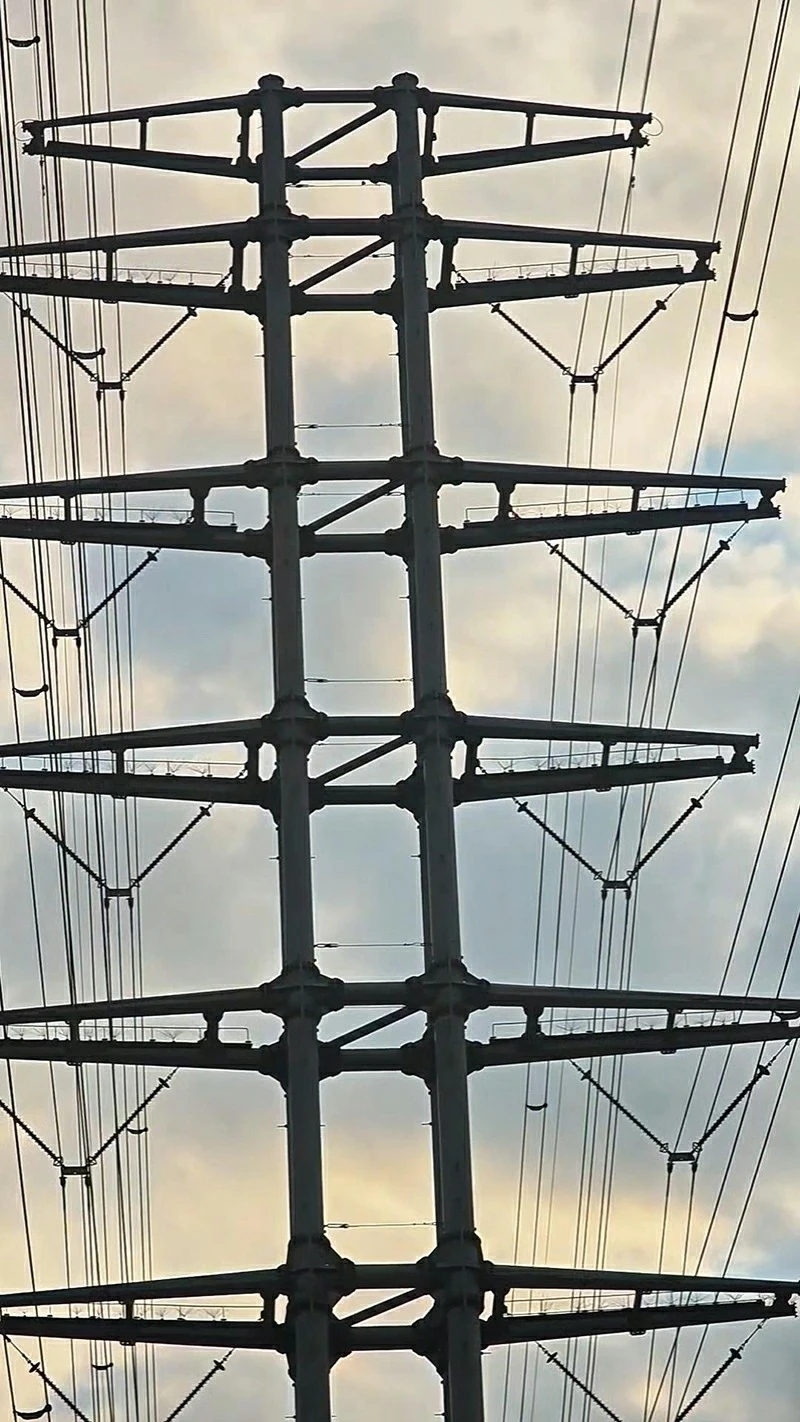

The Multi Pole Steel Structure uses three or more steel columns. The columns connect through horizontal and diagonal bracing. This creates a space frame with high stiffness. This design is common in substation frameworks, large terminal towers, and angle towers. These locations must handle forces coming from multiple directions. A single pole or two-pole structure cannot provide the same stability. The multi-pole design distributes tension evenly across all columns.

Handling Multiple Conductors with Ease

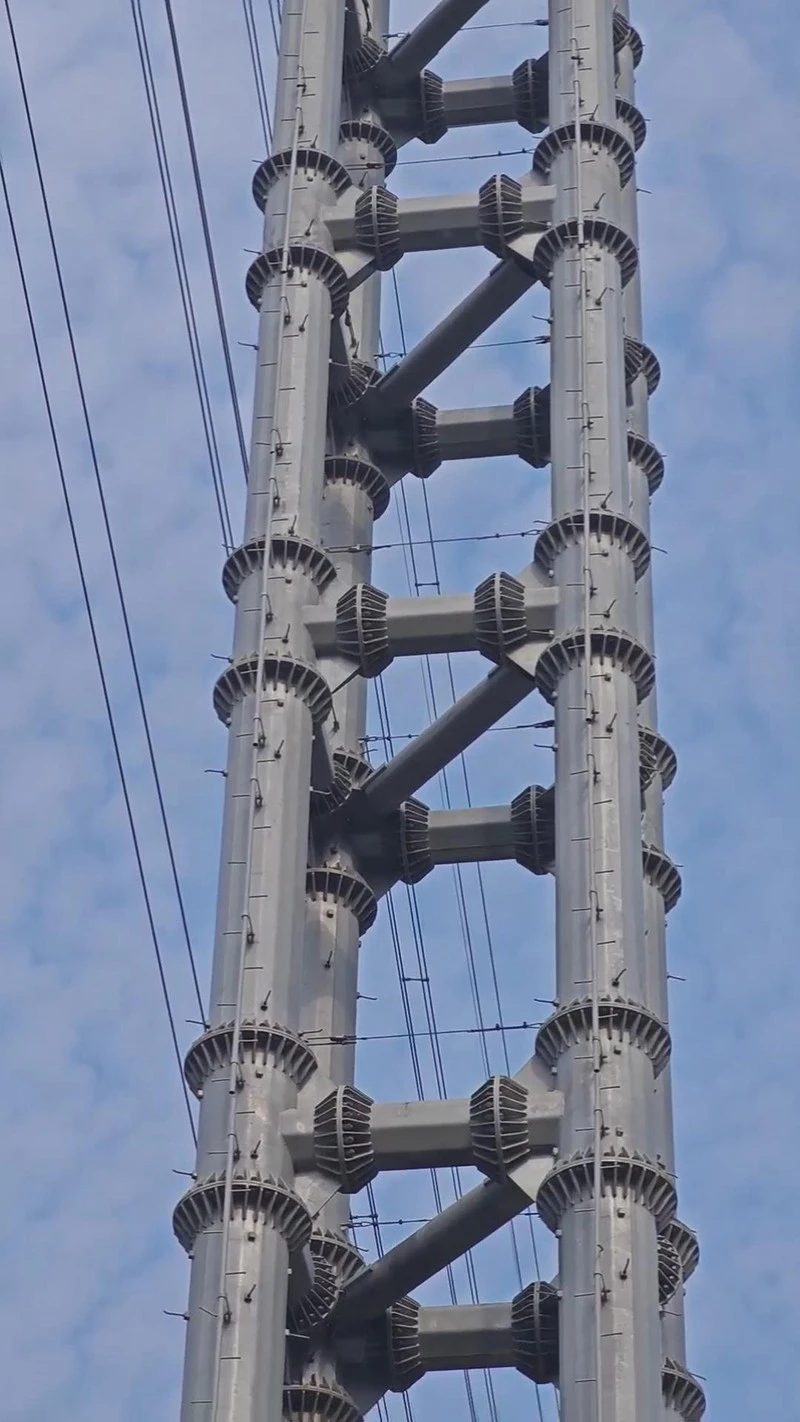

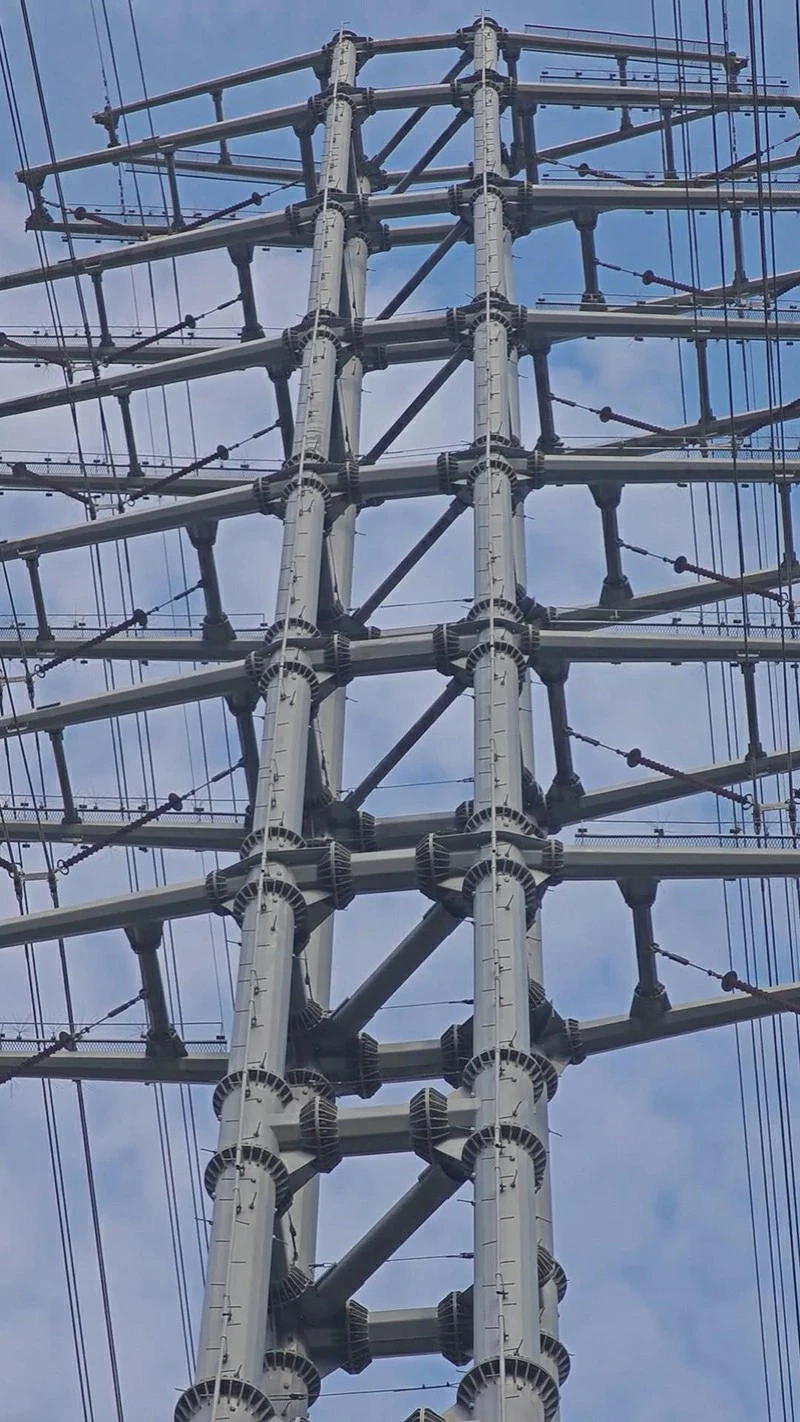

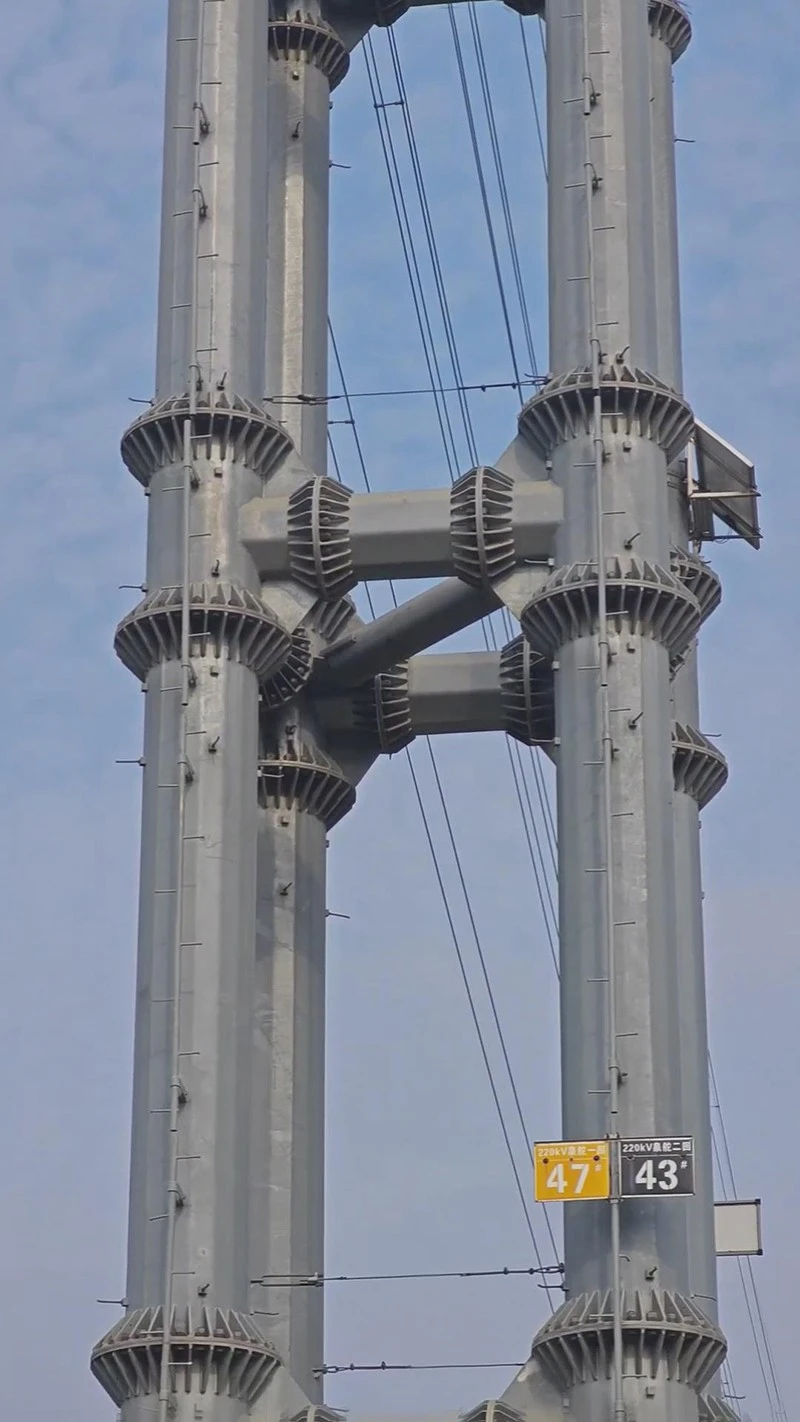

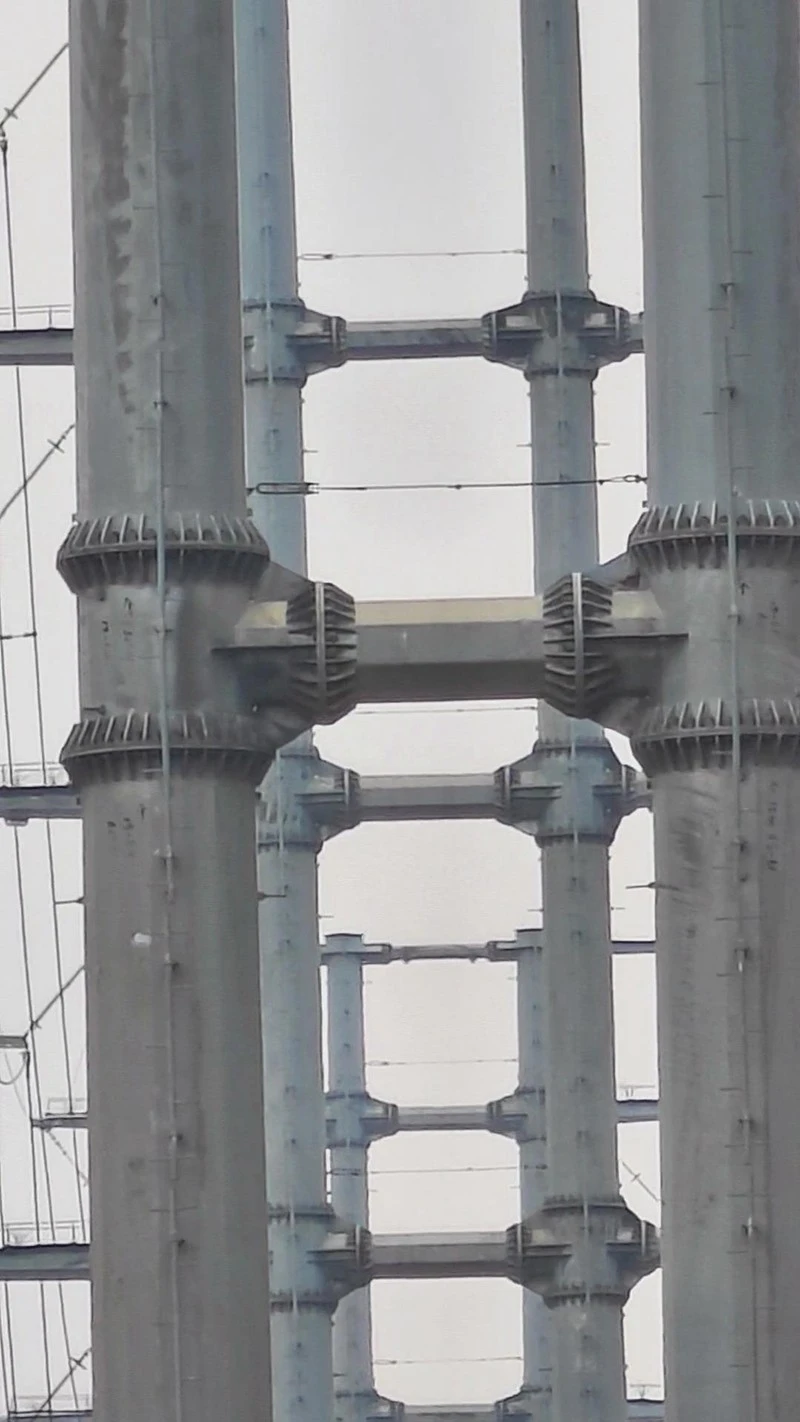

Substations often have many conductors entering and leaving. These conductors pull in different directions. The Multi Pole Steel Structure resists these forces. The bracing system transfers loads between columns. This prevents any single column from carrying too much weight. Our engineers calculate the load path through every bracing member. We ensure the structure remains upright under all operating conditions. This design works well for projects with four or more circuits.

Fully Automatic CNC Angle Steel Production Line

High-Power Laser Cutting Machine

Four-Column Press

Root Cleaning And Back-Gouging Machine

Hot-Dip Galvanizing Production Line

Sorting And Bundling Area

Coordinating Column and Bracing Dimensions

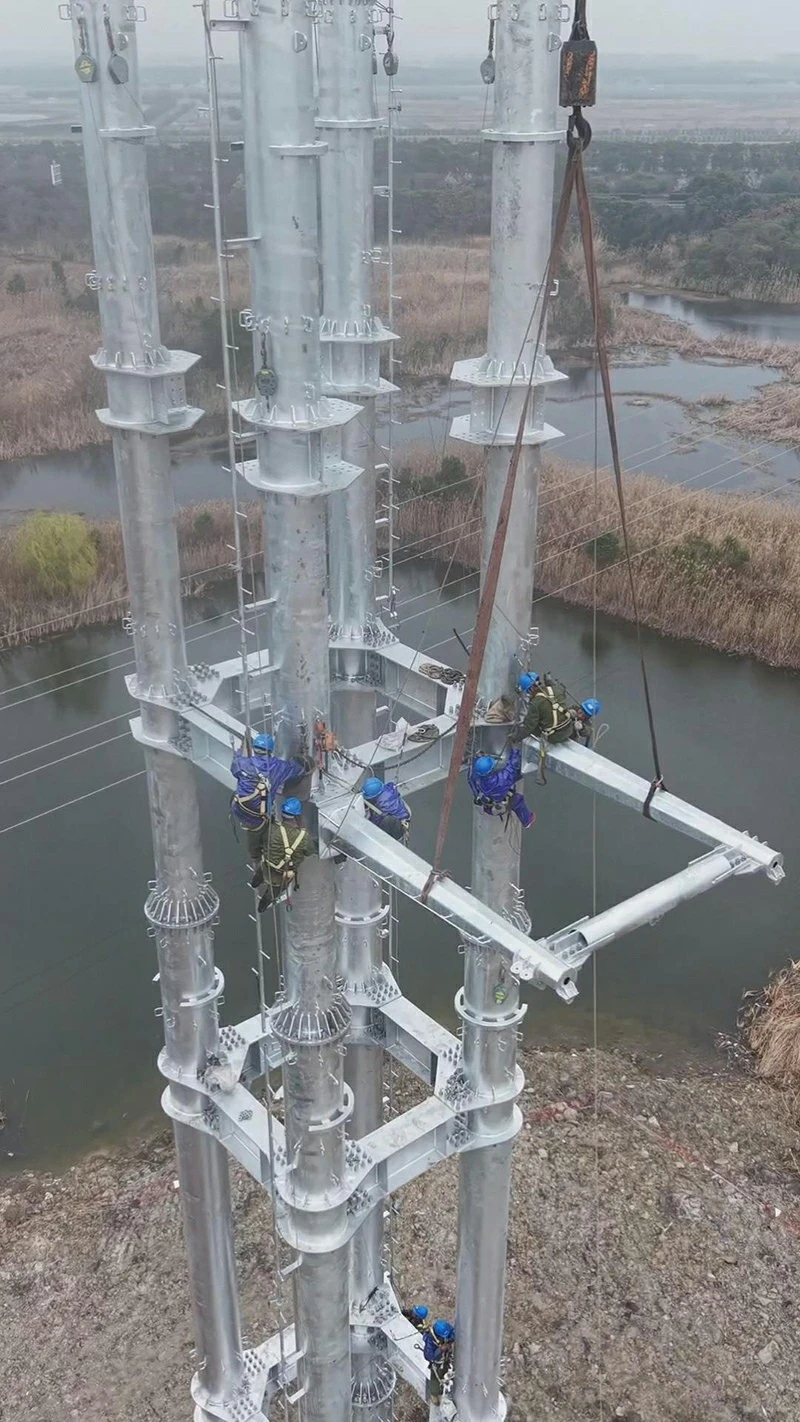

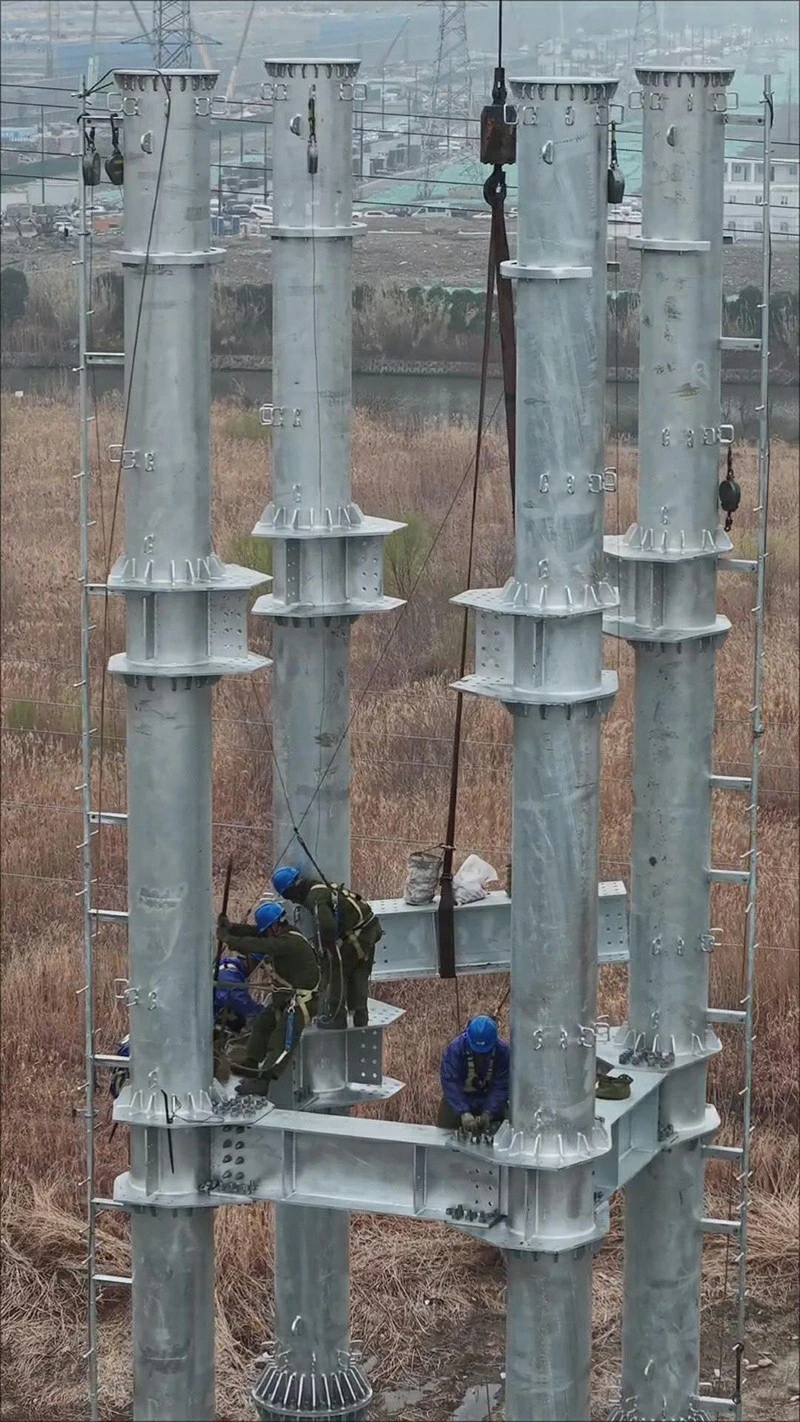

The challenge with a multi-pole structure is dimensional coordination. Every column and brace must fit together perfectly. We use 3D modeling software to map every connection point. Each member has a precise location in space. Our CNC drilling machines make the bolt holes accurately. We test the assembly of the bracing with the columns before we ship. This eliminates mismatches at your site. Your crew can assemble the structure without modifications.

Galvanizing and Testing Complete Assemblies
We dip all components of the Multi Pole Steel Structure in our galvanizing line. The zinc coating covers every part of each member. We test the coating thickness on braces, columns, and connection plates. The coating is consistent across all pieces. We also perform a trial assembly of the most complex joints. This confirms the fit before shipment. Our quality file includes all test records for your review.

Reliable Performance for New Energy Projects
We have supplied the Multi Pole Steel Structure to many renewable energy projects. These include wind farm substations and solar plant switchyards. These projects often have tight schedules. Our team coordinates production to meet your deadlines. The structure arrives on site with clear assembly instructions. Our after-sales team is available to support your installation crew.
