01 SUPPORTING POWER AND CONTROL CABLES
The Cable Bracket is a steel bracket that holds electrical cables. It is installed in cable trenches, tunnels, and substations. The brackets mount on walls or steel columns. They hold cables in neat rows. This keeps cables organized and easy to access. The bracket makes maintenance work much easier. It also prevents cables from touching the ground or each other.
02 TECHNICAL SPECIFICATIONS
|
Parameter |
Specification |
|
Product Type |
Cable support bracket |
|
Material |
Angle steel or flat steel |
|
Arm Length |
Customized to trench width |
|
Load Capacity |
Based on cable weight |
|
Arm Configuration |
Single or multi-tier |
|
Coating |
Galvanizing or powder paint |
|
Color Options |
White (standard), gray, black |
|
Applications |
Cable trenches, tunnels, substations |
|
Installation |
Welded or bolted to wall |
|
Spacing |
Design based on cable weight |

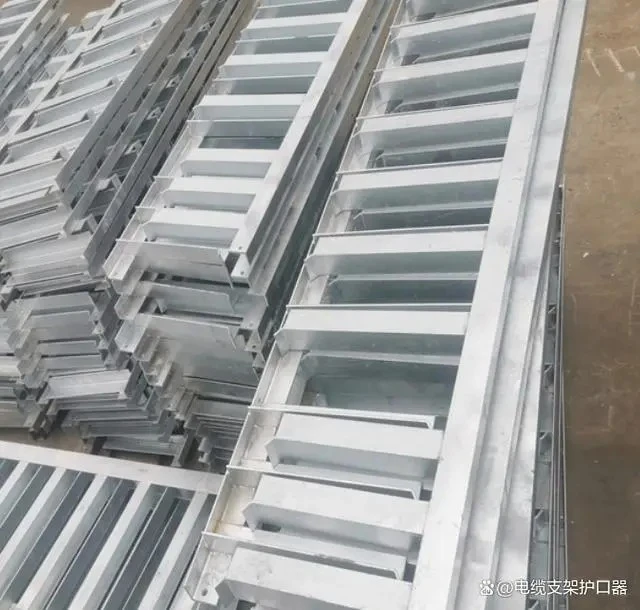

03 PRODUCTION EQUIPMENT
Simple Design for Heavy Loads

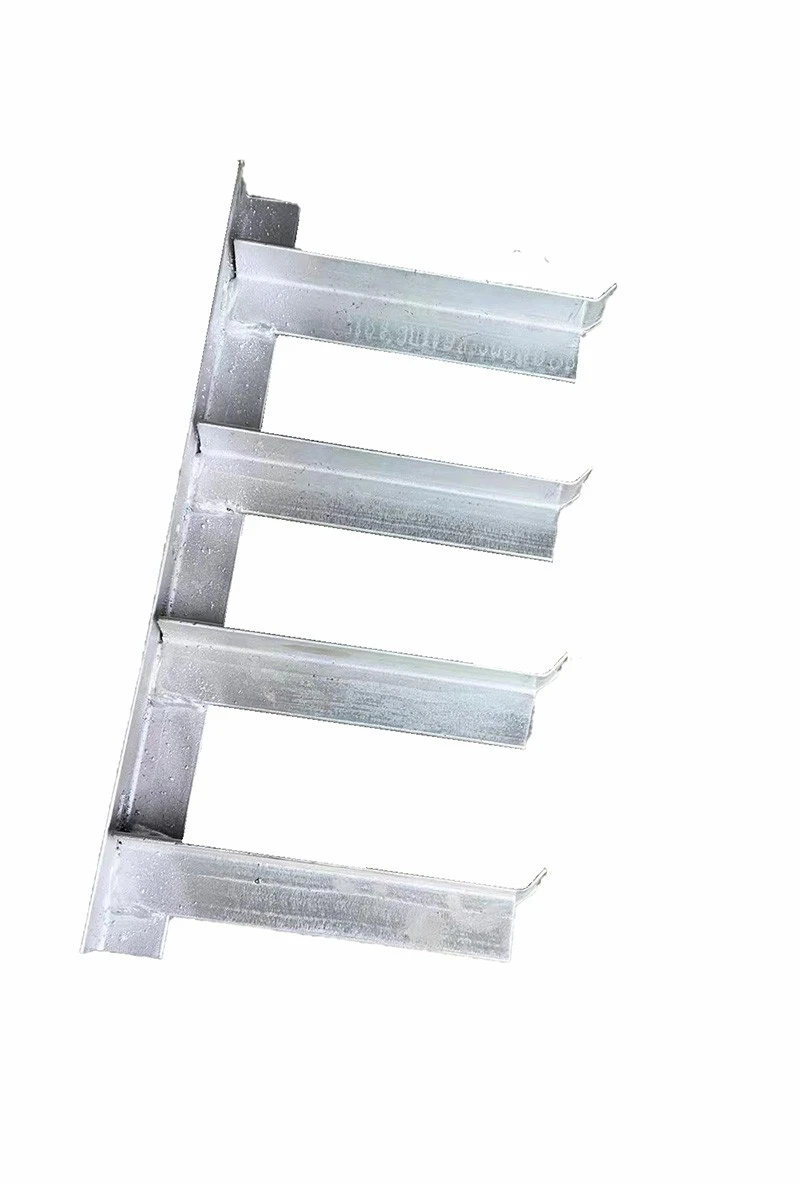

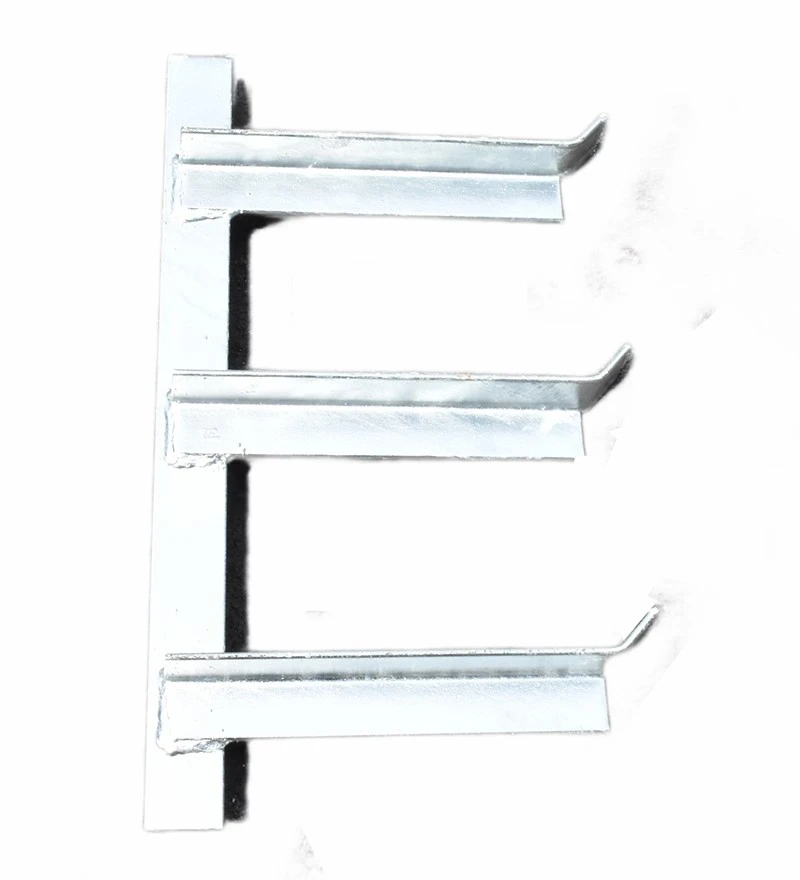

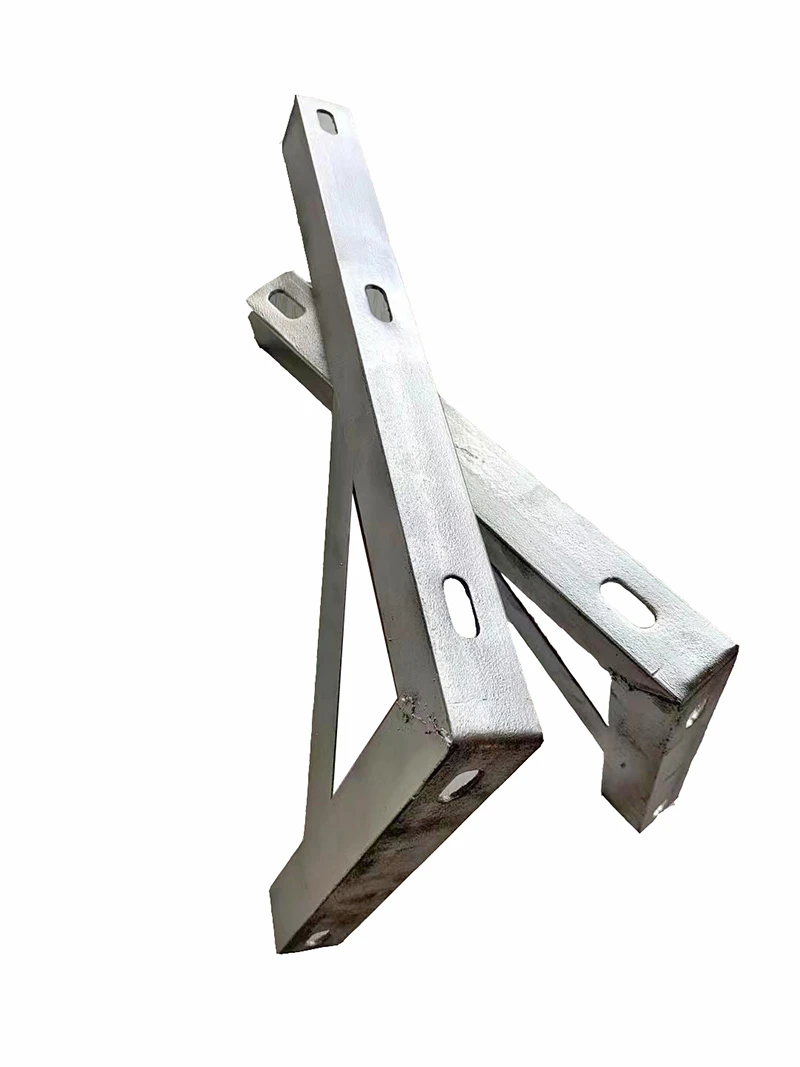

The Cable Bracket is made from angle steel or flat steel. The design is simple but strong. The bracket has a horizontal arm that holds the cables. The arm extends from the wall. It is reinforced with a diagonal brace. The bracket can hold many cables. We design the spacing based on your cable count. The brackets are installed at intervals along the cable trench.
04 OVERALL VIEW
Custom Sizing for Your Project

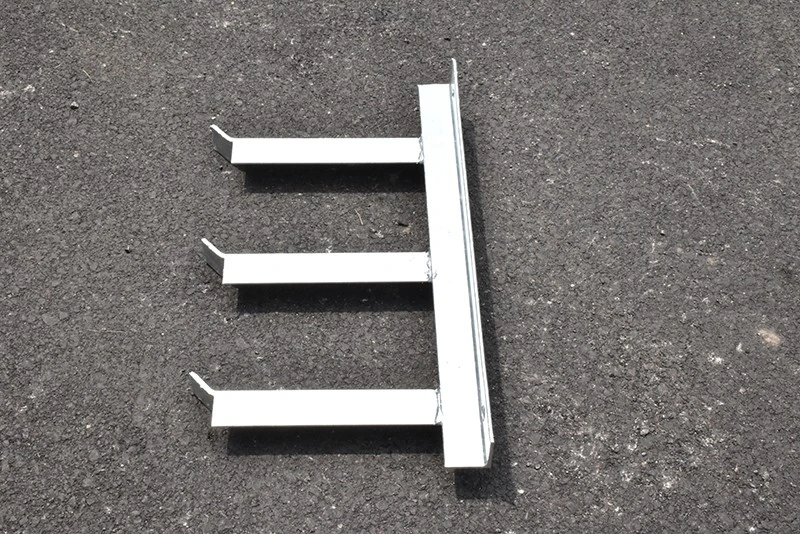

The Cable Bracket is available in many sizes. The arm length depends on the trench width. The load capacity depends on the cable weight. We customize the bracket for your project. We can also provide brackets with multiple arms. This allows cables to be arranged in layers. The design is flexible and practical.

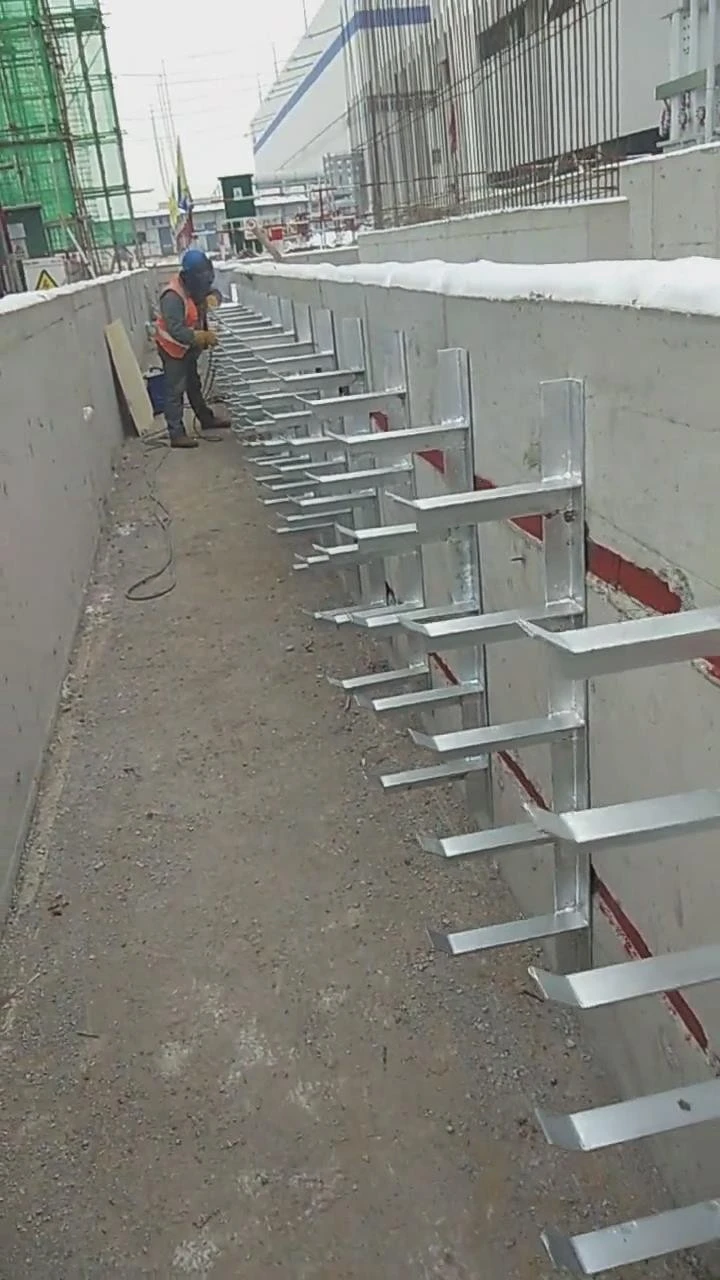

05 ON-SITE CONSTRUCTION DRAWINGS
Surface Coating Options
We offer two coating options for the Cable Bracket. The first is hot-dip galvanizing. This is best for wet or outdoor locations. The second is white powder coating. This is common in indoor installations. White coating makes it easy to see dirt and damage. We recommend the best option based on your environment.
06 CERTIFICATIONS
Complete Hardware Supply
We supply the Cable Bracket with all mounting hardware. This includes bolts, anchors, and brackets. The hardware is compatible with the bracket. We also provide the installation drawing. Your crew can install the brackets without additional preparation.
